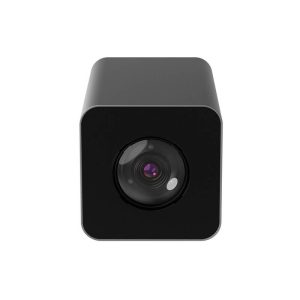

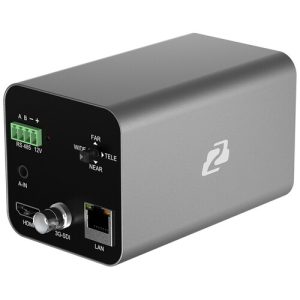

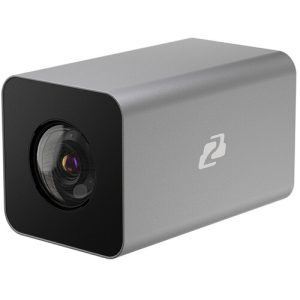

BZB Gear Full HD Integrated IP/SDI/HDMI 20X Zoom Camera
BZB Gear Full HD Integrated IP/SDI/HDMI 20X Zoom Camera can be used in a variety of setups for lecture hall applications or surveillance. The compact box camera captures up to 1080p video at 60 Hz over 3G-SDI, HDMI, or IP streaming simultaneously.
Features of the BZB Gear Full HD Integrated IP/SDI/HDMI 20X Zoom Camera:
- For Lecture Halls and Surveillance
- Up to 1080p60 Capture and Streaming
- 3G-SDI and HDMI Output
- IP Lan Streaming
- H.264 and H.265 Compression
- 20x Optical Zoom, 12x Digital Zoom
- 2D/3D Noise Reduction
- Supports RTMP and ONVIF Protocols
- VISCA, Pelco-P/D Serial Control
- Power Adapter and Cable Included
Specifications:
Sensor 1/2.8″ CMOS
Sensor Resolution 2.38 Megapixel
Video Format 1080p at 60, 59.94, 50, 30, 29.97, 25 fps
1080i at 60, 59.94, 50, 30, 25 fps
720p at 60, 59.94, 50, 30, 29.97 fps
Minimum Illumination 0.5 Lux (Day)
0.1 Lux (Night)
0.005 Lux (DSS)
Shutter Speed 1/25 to 1/30,000 sec
Focus 4.7 to 94mm
SNR ≥50 dB
Noise Reduction 2D, 3D

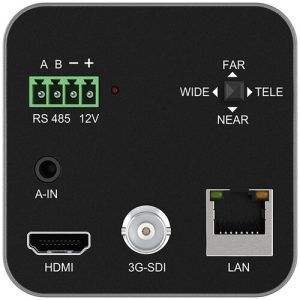

Video Output 1 x BNC Female (3G-SDI)
1 x HDMI Female
1 x RJ45 Female (IP Streaming)
Audio Input 1 x 1.8″ / 3.5 mm Female
Serial Port 1 x Euroblock 4-Pin Male (RS-485)
Horizontal Field of View (degree) 2.9 to 65°
Aperture f/1.6 to 3.5
Optical Zoom 20x
Digital Zoom 12x
Communication Protocol VISCA, PELCO-D, PELCO-P, ONVIF
Baud Rate 4800/9600/19200/38400 b/s
Power Consumption 12 W
Operating Temperature 14 to 122° F / -10 to 50° C
Humidity 0 to 95%
Overall Dimensions (L x W x H) 4.8 x 2.8 x 2.8″ / 122 x 70 x 70 mm
Weight 7.1 oz / 0.2 kg
