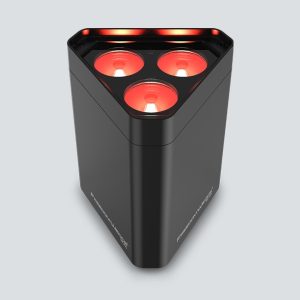

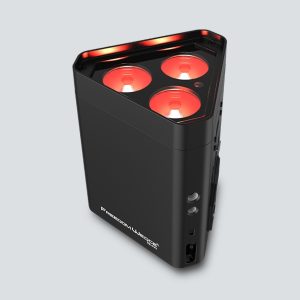

Chauvet DJ Freedom Wedge Quad Battery Wash Light
The Freedom family of CHAUVET DJ fixtures means 100% TRUE wireless, battery-operated products with built-in D-Fi™ transceivers to send and receive wireless DMX signals.
Features of the Chauvet DJ Freedom Wedge Quad Battery Wash Light:
100% TRUE wireless, battery-operated, quad-colour LED Par with built-in D-Fi™ transceiver
Triangular-shaped LED wash light designed to fit inside triangle truss systems from most manufacturers
Attaches to 35 mm truss without the need for bracket using M10 or M12 threaded rig points

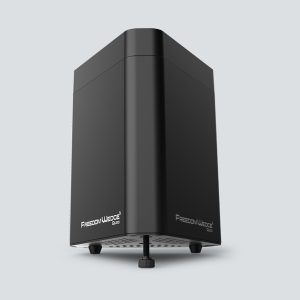

Shine light where it is needed using the built-in adjustable leg
Easily control static colours and automated programs with the included IRC-6 remote
Create any colour without DMX by using the built-in digital display
Smooth dimming with built-in dimming curves
Flicker-free operation suitable for on-camera use
Create coordinated light shows by linking other quad-colour LED fixtures in Master/Slave mode
Specifications:
DMX Channels: 4, 6, 10

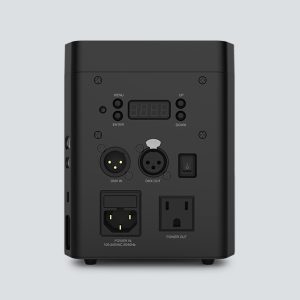

DMX Connectors: 3-pin XLR
Light Source: 3 LEDs (quad-colour RGBA) 6 W, (2.4 A), 50,000 hours life expectancy
Strobe Rate: 0 to 25 Hz
PWM Frequency: 1.2 KHz
Beam Angle: 19°
Field Angle: 36°
Maximum Run Time: (all on): up to 8 hours
(single colour): up to 20 hours
Recharge Time: 5 hours
Operating Frequency: 2.412 to 2.484 GHz
Illuminance: 1,144 lux @ 2 m
Power Linking: 21 units @ 120 V; 39 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 43 W, .4 A @ 120 V, 60 Hz
47 W, .2 A @ 230 V, 50 Hz
Weight: 3.8 lb (1.8 kg)
Size: 4.4 x 4.4 x 6.6 in (117 x 117 x 166.5 mm)
Approvals: CE, FCC
Optional Controllers: IRC-6
What’s Included
Freedom Wedge Quad
Power cord
Quick Reference Guide
IRC-6
Brand
Chauvet DJ
CHAUVET DJ is a premier line of entertainment lighting, controllers and accessories for the mobile performer, DJs, clubs, corporate events and more. Offering the most value in the industry. Chauvet is a leading developer of luminaires, trussing, controllers, atmospherics and related equipment marketed globally under four main brands: CHAUVET DJ, CHAUVET Professional, Iluminarc, and ChamSys. Each Chauvet brand is well thought out to serve different customer needs but they all share the company’s focus on positively impacting every market segment with a competitive advantage in terms of value, innovation or performance.
Founded in 1990 by Albert and Berenice Chauvet, the company is widely recognized for its leadership in bringing successful concepts to market, including pioneering the development of affordable LED color mixing fixtures. The Chauvet mission is to elevate the world of lighting with customer-driven products at unparalleled value. We achieve this by following our VIP standards (value, innovation, performance) which motivate us to capture every technological and competitive edge to benefit our customers who are always our first priority.
