Electro-Voice MFX-12MC 12in Multi-Use Coax Monitor (White)

Description:

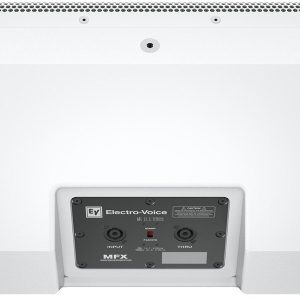

MFX Multi-Functional Monitors deliver a new level of reference performance from compact, two-way, coaxial designs. In addition to their primary use as live sound stage monitors, they can also serve as shortthrow, full range sound reinforcement speakers (with or without subwoofer) and are appropriate for a wide range of permanent installations. The internal details of the cabinet were selected in order to maximize internal volume while maintaining a low stage profile to preserve sight lines. The input panel is recessed into the rear of the speaker, protecting connectors within the cabinet envelope. The panel includes NL4 input and loop-through connections, along with a passive/biamp switch.

Technical Specifications:

• Frequency response (-3 dB)1 62 Hz – 18 kHz
• Frequency range (-10 dB)1 50 Hz – 19 kHz
• Rotatable coverage 60° x 40° FOH, 40° x 60° Monitor
• Rec. high-pass frequency Use factory preset
• Axial sensitivity 1 97 dB (1 W/1 m)
• Max. SPL2 135 dB
• Power handling3 450 W (Continuous), 3000 W (Peak)
• Nominal impedance passive 8 ?
• Nominal impedance biamp LF 8 ?
• Nominal impedance biamp HF 8 ?
• Transducer CXCA3128-1CA
• Connectors Neutrik NL4 input with NL4 pass through
• Enclosure 12-18-mm Baltic birch plywood with EVCoat
• Logo Rotatable
• Monitor angles 35° and 55°
• Grille 1.5-mm zinc plated steel with corrosion resistant coating
• Handles Two with integrated cup for standard 35-mm pole
• Suspension Four M10 suspension points located to work with truss clamps, wall mounts, flying brackets and a full range of mounting accessories
• Color Black (RAL 9005) or white (RAL 9003)
• Dimensions (H x W x D) 500 mm x 420 mm x 298 mm (19.7 in x 16.5 in x 11.7 in)
• Net weight 19 kg (41.9 lb)
• Shipping weight 21.2 kg (46.7 lb)
