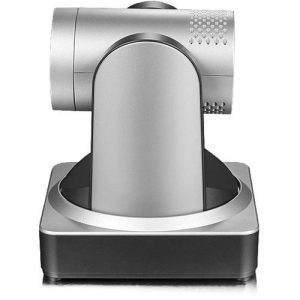

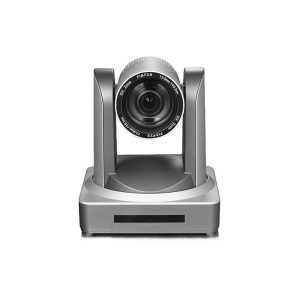

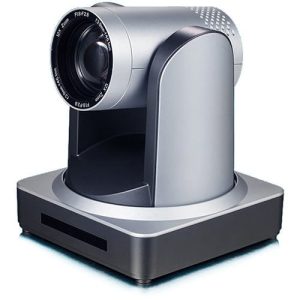

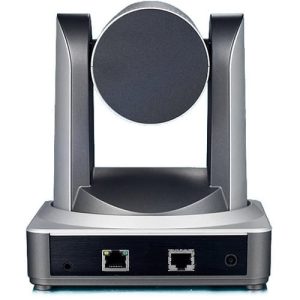

Minrray UV510AS-30-ST-NDI-IR camera 30x optical zoom, HDMI and LAN output

Features of the Minrray UV510AS-30-ST-NDI-IR camera 30x optical zoom, HDMI and LAN output:

1/2.8″ CMOS sensor offers a maximum resolution of 1920 x 1080
5.5-110mm varifocal lens offers 20x optical zoom and viewing angle range from 3.3 to 54.7°
Auto focus for quick and accurate focusing
2D/3D noise reduction
SDI supports transmission distances up to 328′
Supports 8, 16, 32, 44,1, 48 kHz sampling frequencies
AAC, MP3, and PCM audio coding
Supports ONVIF, GB/T28181, RTSP, and RTMP protocols
Supports RTMP push mode for linking streaming media server (Wowza, FMS), RTP multicast mode, and network full command VISCA control protocol
RS-485 and RS-232 ports for supporting cascade function
Supports VISCA, PELCO-D, PELCO-P, and Automatic Identification protocols
Low-power sleep/wake function reduce power consumption to 400mW
Support 255 preset positions (remote controller is set to 10 preset positions)
Compatible with both IR remote controller and wireless remote controller
Suitable for tele-education, lecture capture, webcasting, videoconferencing, tele-training, tele-medicine applications and interrogation and emergency command systems

Specifications:

Sensor 1/2.8″ HD CMOS
Effective Pixels 2.07 MP, 16:9
Video Formats 1080p 60/50/30/25/59.94/29.97 Hz
1080i 60/50/59.94 Hz
720p 60/50/30/25/59.94/29.97 Hz
Focal Length 5.5-110mm
Optical Zoom 20x
Field of View 3.3° (tele) to 54.7° (wide)
Aperture F/1.6-3.5, auto
Digital Zoom 10x
Minimum Illumination 0.5 lux (f/1.8, AGC ON)
DNR 2D and 3D DNR
White Balance Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus Auto/Manual/A key focus
Electronic Shutter Manual
BLC ON/OFF
WDR Mode OFF/ Dynamic level adjustment
Video Adjustment Brightness, color, saturation, contrast, sharpness, B&W mode, gamma curve
SNR >55 dB
Video Interfaces HDMI, SDI, LAN, RS-232 (Ring through RS-232 output), RS-485, A-IN
Video Output HDMI, SDI, LAN, USB 3.0, USB 2.0
Stream Type Double stream output
Video Compression Format H.264, H.265
Control Protocol VISCA/Pelco-D/Pelco-P
Baud Rate: 115200/9600/4800/2400 bps
Audio Input A-IN：Double track 3.5 mm linear input
Audio Compression Format AAC/MP3/G.711A
Network Interface 100M IP port (100Base-TX)
Network Protocols RTSP, RTMP, ONVIF, GB/T28181, Network VISCA Control Protocol
Supports remote upgrade, reboot, and reset
Power Outlets HEC3800 outlet (12 VDC)
Power Adapter Input: 110 to 220 VAC
Output: 12 VDC, 1.5 A
Input Voltage 12 VDC ±10%
Input Current 1 A (maximum)
Power Consumption 12 W (maximum)
Pan/Tilt ±170°, -30 to 90°
Control Pan Control Speed: 0.1 to 60°/s
Tilt Control Speed: 0.1 to 30°/s
Preset Speeds Pan: 60°/s, Tilt: 30°/s
Preset Channels 255 presets (10 presets by remote controller)
Storage Temperature 14 to 140°F / -10 to 60°C
Storage Humidity 20 to 95%
Working Temperature 14 to 122°F / -10 to 50°C
Operating Humidity 20 to 80%
