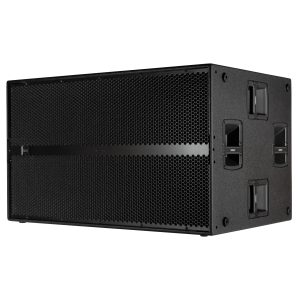

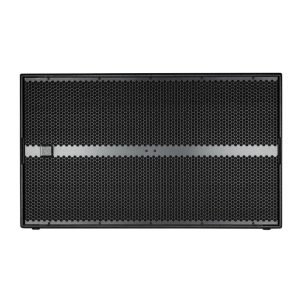

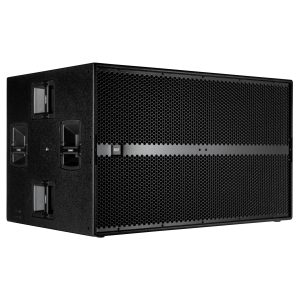

RCF SUB 9007-AS 2 x 21″ Woofer 141 dB max SPL
RCF SUB 9007-AS 2 x 21″ Woofer – featuring two, high power, hyper-vented 21” neodymium woofers with 4.0” inside-outside voice coils, this cabinet deliver a serious amount of low frequencies. Powered by a 7200 W digital amplifier, the SUB 9007-AS can perform in the most demanding situations.
Features of the RCF SUB 9007-AS 2 x 21″ Woofer 141 dB max SPL:
- 7200 Watt Peak power – 3600 Watt RMS
- 141 dB max SPL
- 20 Hz – 400 Hz frequency response
- 2 x 21″ Woofer
- DSP controlled Input section with selectable presets
- Delay control
- Integrated mechanics for multiple configurations with HDL50-A, HDL20-A, HDL10-A
- RDNet remote and control
- Baltic birch tour grade cabinet
Specifications:
Acoustical specifications
FREQUENCY RESPONSE:
20 Hz ÷ 400 Hz
MAX SPL @ 1M:
141 dB
Transducers
WOOFER:
2 x 21” neo, 4.0” v.c

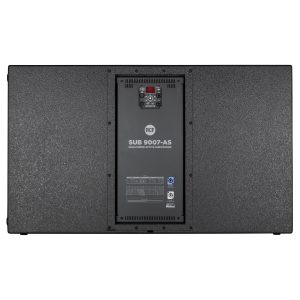

Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
+4 dBu
Processor section
HI-PASS FREQUENCIES:
25Hz, 35Hz
LOW-PASS FREQUENCIES:
Variable from 50Hz to 400Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Fast Limiter
CONTROLS:
Gain, EQ, Xover, Phase switch, Output Delay Settings, Cardiloid
RDNET:
Yes
Power section
TOTAL POWER:
7200 W Peak, 3600 W RMS
LOW FREQUENCIES:
7200 W Peak, 3600 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Mounting points, 2 x M20
HANDLES:
8 side
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
708 mm / 27.87 inches
WIDTH:
1188 mm / 46.77 inches
DEPTH:
785 mm / 30.91 inches
WEIGHT:
96 kg / 211.64 lbs
| Weight | 242.51 lbs |
|---|---|
| Dimensions | 44.69 × 32.48 × 29.92 in |
Brand
RCF
In 1949, RCF’s three founders conjured a bold vision based on technology that was considered niche at the time. The real breakthrough came in the '60s when concert sound began to transition from small acoustic setups to big spaces, requiring electric amplification for voices and other low-volume musical instruments. In-depth knowledge in transducers and electronics qualified RCF to develop complete audio systems, bringing the company to a leading position in multiple audio markets over the years, from OEM transducers to Hi-Fi, public address, portable speakers, recording studios, and big concert systems. RCF’s passion for perfection drives the design of every product to create enlightening, unique, and delightful experiences for our customers. All speakers and components are designed from the ground up and developed internally to maximize the end result.
