Shure QLXD14/93-G50 Wireless Lavalier System with WL93 Lavalier Mic

Name: Shure QLXD14/93-G50 Wireless Lavalier System with WL93 Lavalier Mic
SKU: QLXD14/93-G50
Availability: PreOrder

Main view of the Shure QLXD14/93-G50 Wireless Lavalier

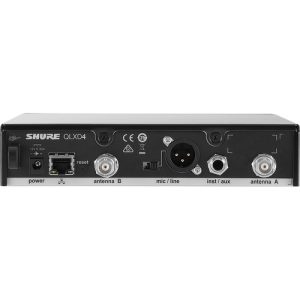

Back view of the Shure QLXD14/93-G50 Wireless Lavalier

Shure QLXD14/93-G50 Wireless Lavalier System provides instructors, presenters, and broadcasters with professional-quality audio, reliable RF performance, and secure AES 256-bit encryption. Rugged and easy-to-use, it is ideal for use in TV broadcast or sound-reinforcement applications in medium-sized venues.

$1,479.00

Available on backorder

Tags: Bodypack Transmitter Diversity Receiver Lavalier Mic QLXD SHURE Wireless Lavalier System WL93Category: Lavalier SystemsSKU: QLXD14/93-G50

Features of the Shure QLXD14/93-G50 Wireless Lavalier System with WL93 Lavalier Mic:

For Presenters and Broadcasters
WL93 Miniature Omni Lavalier Mic
Rugged Bodypack Transmitter
Switching-Diversity Rackmount Receiver
2560 Auto-Scan Frequencies
Selectable 1/10mW RF Power
High-Contrast LCD Display
Ethernet Port for WWB Control Software
9-Hr AA Batteries
Expandable to 60 Mic Channels/330′ Range

Specifications:

System
Wireless Technology Digital UHF
Number of RF Channel Frequencies 2560
Included Transmitters 1 x Bodypack
Diversity Antenna Diversity
RF Frequency Band G50:
470 to 534 MHz
RF Bandwidth 64 MHz
Frequency Step Size 25 kHz
Max Operating Range 330′ / 100.6 m
Max Transmitters per Band 60
Sample Rate/Resolution 48 kHz / 24-Bit
Latency < 2.9 ms Dynamic Range 120 dB Encryption AES 256 Modulation Proprietary Receiver Receiver Type Tabletop Mounting Options Rackmount (with Included Hardware) Rackmount Size 1 RU (1/2 Rack) Antenna 2 x 1/2 Wave External, Detachable (Rear-Mount) Number of Audio Channels 1 Audio I/O 1 x XLR 3-Pin Male Balanced Output 1 x 1/4″ TRS Female Balanced Output Gain Range -18 to +42 dB (1 dB Steps) Pad 30 dB Audio Output Level XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4″ Output: +12 dBV (Instrument Level) Phantom Power Protection On 1/4″, XLR Output Network I/O 1 x RJ45 (10/100 Mb/s) Network Protocols DHCP, Manual IP Impedance XLR Output: 100 Ohms (Balanced) 1/4″ Output: 100 Ohms (Balanced) 1/4″ Output: 50 Ohms (Unbalanced) Adjacent Channel Isolation >70 dB
Spurious Rejection: >80 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 0.4 A, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
1 x LED (Sync)
1 x LED (Peak)
Housing Metal
Operating Temperature 0 to 122°F / -18 to 50°C
Dimensions 7.8 x 1.6 x 5.9″ / 197 x 41 x 151 mm (without Antennas)
Weight 1.7 lb / 777 g (without Antenna)
Transmitter
Transmitter Type Bodypack
RF Output Power 1 / 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Audio Input Level 8.5 dBV / 7.5 V p-p
Gain Range 0 to 21 dB (3 dB Steps)
Frequency Response 20 Hz to 20 kHz
Sync Method IR
Antenna 1 x 1/4 Wave
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life 9 Hours (Alkaline)
Display & Indicators 1 x Backlit LCD (Channel, Group, RF Output Power)
Housing Aluminum
Dimensions 2.6 x 3.4 x 0.9″ / 65 x 86 x 23 mm
Weight 4.9 oz / 138 g (without Batteries)
Microphone
Microphone Type Lavalier
Color Black
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 50 Hz to 20 kHz
Maximum SPL 120 dB SPL
Impedance 3000 Ohms
Sensitivity -38 dBV/Pa
Dynamic Range 102 dB
Output Connectors 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Cable Length 3.94′ / 1.2 m
Operating Voltage 2 to 10 V
