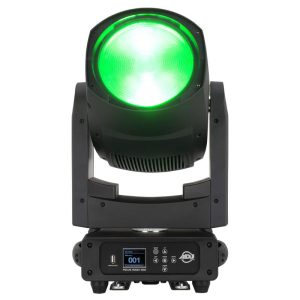

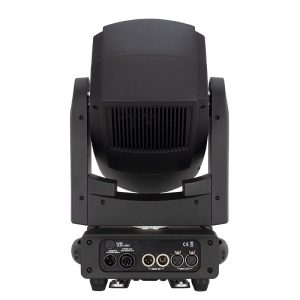

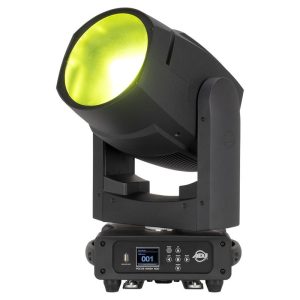

ADJ Focus Wash 400W RGBACL LED Moving Head
ADJ Focus Wash 400W RGBACL LED Moving Head with a 10 to 41 degree motorized zoom, with flicker free operation for TV and film, linear white color temperature control from 2700K – 6500K, and virtual CMY color mixing.
$2,589.00
Features of the ADJ Focus Wash 400W RGBACL LED Moving Head:
- 400W moving-head wash with RGBACL color mixing
- Hex color fixture with full-color saturation for better fills
- 10–46-degree motorized zoom
- Electronic dimming and strobe effects put you in complete control of your display
- DMX and RDM protocol support
- Highly visible LCD screen with easy-to-use 6-button control panel
- Flicker-free lighting keeps your lights consistent in videos and stills
- High-powered LED light offers up to 50,000 hours of use
Specifications:
SOURCE:
• 400W RGBACL LED
• 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Â
PHOTOMETRIC DATA:
• Zoom Range: 10° – 41°
• Field Angle: 19° – 54°
• Color Temperature: 10,000K
• 4,600 Total Lumen Fixture Output
• Lux @ 10′: 10,384 lx (965 foot candles), 1.8′ diameter
• CRI: 90+
• CRI R9: 87.3
• TM30 Rf: 90.8
• TM30 Rg: 99.5
COLOR:
• Individual RGBACL (Red, Green, Blue, Amber, Cyan, Lime) Control
• Virtual Color Wheel Control
• Virtual CMY Control
EFFECTS:
• RGBACL Color Mixing
• Virtual CMY Color Mixing
• 10° – 41° degree Motorized Zoom
• Electronic Strobe and Dimmer
• Color Temperature Red to Green control via DMX
• Linear Color Temperature control, 2700K to 10,000K
• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
CONTROL / CONNECTIONS:
• 5 DMX Channel Modes: [Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24)]
• Selectable LED Refresh Rates, 900Hz to 25kHz.
• Linear Dimming with user selectable Dim Curves, Dim Modes and Dim Speeds
• 6-button Control Panel and LCD Menu Display
• USB Firmware Update Port
• RDM (Remote Device Management)
• Quiet Fan Mode
• Locking 3-pin and 5-pin XLR Connector In/Out
• IP65 Locking Power Connector In/Out
• With Wired Digital Communication Network
SIZE / WEIGHT:
• Length: 10.96″ (278.43mm)
• Width: 8.4″ (213.33mm)
• Vertical Height: (Without Snoot)19.6″ (498.1mm)
• Vertical Height (With Snoot) 22.37″ (568.1mm)
• Weight: 23.5 lbs. (10.7 kg)
ELECTRICAL / THERMAL:
• Multi-voltage: AC 100-240V / 47/63Hz
• 460W Power Consumption @ 120V
• 430W Power Consumption @ 240V
• Multiple Unit Power Linking
• 5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS:
• CE | cETLus (Pending)
• IP20
• dB Rating: 46dB @ 3′
INCLUDED ACCESSORIES:
• Snoot
• 1×40 Degree Linear Lens
• 2 Omega Brackets
• Safety Cable
• IP65 Locking Power Cable
Specifications and documentation subject to change without notice.
