Antari AF-5X Special Effect Fan with DMX

(1 customer review)

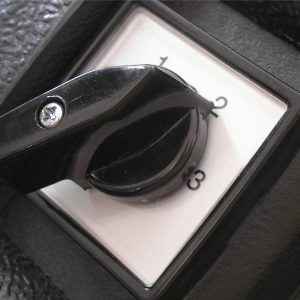

Antari AF-5X Special Effect Fan with 3 speed setting to fulfill different wind effect requirement. It provides wind effects when using by itself, it also can work with other effect machine such as fog, haze, snow and bubble to increase the coverage.


UPC: 4719850652708 SKU: AF-5X Category: Tags:
Antari Canada

Input voltage US model : AC 100-120V, 50/60Hz 13A
EU model : AC 220-240V, 50/60Hz 7.25A
Rated power 1600W
Ambient temp/ range
0°C – 40°C (32°F – 104°F)
Air flow
1743 CFM (High)
1567 CFM (Medium)
1351 CFM (Low)
Fan speed
1242 – 1480 rpm (AC 110V / 60Hz)
1175 – 1289 rpm (AC 220V / 60Hz)
Housing Material
Flame Retardant Plastic (PE 9731)

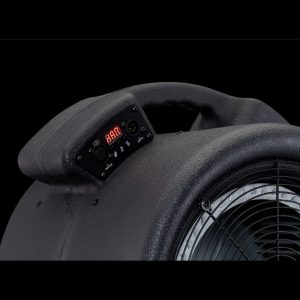

Control Manual, Timer, DMX 512
Wireless (Optional)
DMX channels 1 channel
Connection XLR 5-pin (DMX)
Optional accessories WTR-10 Wireless Remote (For AF-5XR Only)

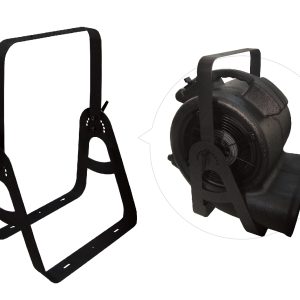

AF-5-HB Hanging Bracket
Dimension L 558 W 465 H 578 mm
(L 21.97 W 18.31 H 22.76 inch)
Weight 17.5 kg (38.58 lbs)



Since 1984, Antari has been a leading global manufacturer, specializing in atmospheric special effects, like fog, haze, and snow for a wide range of international live and broadcast venues, festivals, corporate events, theatre, concerts, clubs, theme parks, architainment, and houses of worship. Antari has always pursued the perfect fog, with some of the most stringent quality control standards in the entertainment production industry.

Antari’s R&D expertise, including an in-house team of engineers and designers, along with modern production facilities, and strict attention to detail allows Antari to continually create new and exciting cutting-edge special effects, while always being mindful of environmental concerns to also create the safest and most energy-efficient products possible. Our products are designed and manufactured to conform to all international safety standards such as CE, LVD, and EMC.

Products are also widely used in residential / commercial security, pest control, industrial humidity control, horticultural uses, hospital sterilization, and leak detection.
