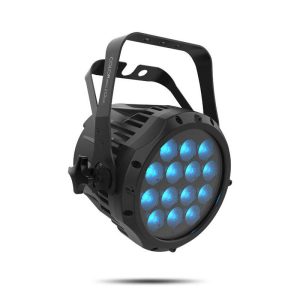

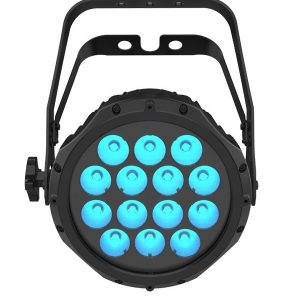

Chauvet Pro COLORado 1 Quad IP65 Wash Light

Features of the Chauvet Pro COLORado 1 Quad IP65 Wash Light:

• RGBW LED wash for touring, rental, and production, indoors or out
• All environment operation with IP rated power and DMX connections
• Color temperature presets, from 3200 K to 10000 K
• Selectable, smooth dimming curves for programming versatility
• LED display with password protection
• M12 GORE® valve for assured internal equalization
• Simple and complex DMX channel profiles for programming versatility
• Double-bracket yoke doubles as floor stand

Specifications

Optical

• Light Source: 14 LEDs (quad-color RGBW) 5 W, (350 mA), 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 10,000 K
• Beam Angle: 13°
• Field Angle: 26°
• Lumens: 1,633
• Illuminance (total): 1510 lux @ 5 m

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 14 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 5
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

Construction / Physical

• Dimensions: 11.96 x 9.96 x 7.95 in (304 x 246 x 202mm)
• Weight: 9.8 lb (4.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

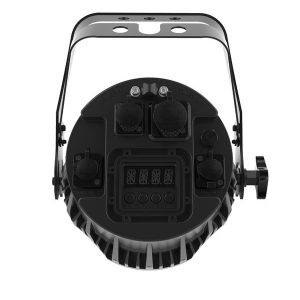

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 4, 5, 6, 7, 9, 10, 13 or 15
• Modes/Personalities (RGB): 3 personalities (TOUR, TR16, AR1.D)
• Modes/personalities (RGBW): 6 personalities (ARC.2, AR2.D, AR2.S, SSP, 16Bit, 8Bit)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 15 units @ 120 V; 25 units @ 208 V; 27 units @ 230 V
• Power and Current: 109 W, 0.892 A @ 120 V, 60 Hz
• Power and Current: 110 W, 0.529 A @ 208 V, 60 Hz
• Power and Current: 112 W, 0.492 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included

• COLORado 1 Quad
• Seetronic Powerkon IP65 power cord
• Gel frame holder (7.5 in/191 mm accessories)

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik TRUE1 power linking cables
• 5-pin IP Rated DMX Cables
• Color Blending Filters: DF60X1D, DF20D
