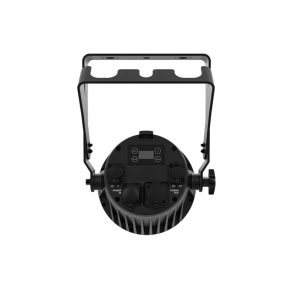

Chauvet Pro COLORdash Accent 3 RGBA Light

Features of the Chauvet Pro COLORdash Accent 3 RGBA Light:

• Quad-color (RGBA) compact LED wash
• Extremely compact with excellent output
• Variable electronic dimmer (0€“100%)
• Simple and complex DMX channel profiles with RDM for programming versatility
• Double-bracketed yoke doubles as floor stand
• Easy to use OLED digital display
• Replaceable filter for additional beam angles
• Built-in auto programs recalled via DMX or Master/Slave

Specifications

Optical

• Light Source: 1 LED (quad-color RGBA) 20 W, (950 mA), 50,000 hours life expectancy.
• Installed Optics: 7°
• Beam Angle w/ filter: 14°
• Field Angle w/ filter: 27°
• Beam Angle w/o filter: 9°
• Field Angle w/o filter: 16°
• Lumens: w/o filter: 377 lm
• Lumens: w/ filter: 393 lm
• Illuminance (total) w/ filter: 175 lux @ 5 m
• Illuminance (total) w/o filter: 486 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes

Construction / Physical

• Dimensions: 163 x 133 x 80 mm
• Weight: 2.0 lb (0.9 kg)
• Exterior Color: Black

Connections

• Power Connection: Edison plug to hard-wired
• Power Input: Hard-wired
• Data Connectors: 5-pin XLR DMX input and output cable whips
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 4, 7 or 11
• Modes/Personalities: 3 personalities (4, 7, 11)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 18 W, 0.141 A @ 120 V, 60 Hz
• Power and Current: 21 W, 0.098 A @ 208 V, 60 Hz
• Power and Current: 20 W, 0.087 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET
• IP Rating: IP20, dry location

What’s Included

• COLORdash Accent 3
