Elation CUEPIX 16IP DTW

(1 customer review)

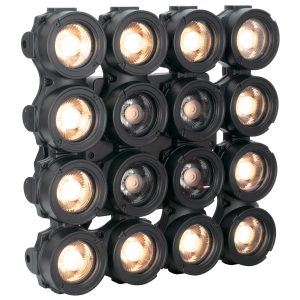

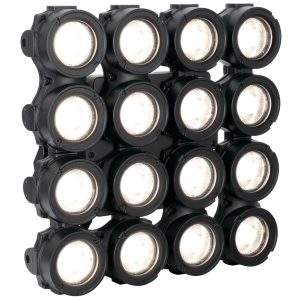

The Elation CUEPIX 16IP DTW is a powerful IP65 outdoor rated effect panel luminaire that features a 4×4 array of 16x40W DTW COB LEDs, full pixel control and 16-bit dimming, variable dimming curve modes, high speed electronic shutter and strobe.

$2,779.00

UPC: 810008260197 SKU: CUEPIX-16-IP-DTW Category: Tags:
Elation

Features of the Elation CUEPIX 16IP DTW

Versatile IP65 Outdoor Rated Effect Panel Luminaire

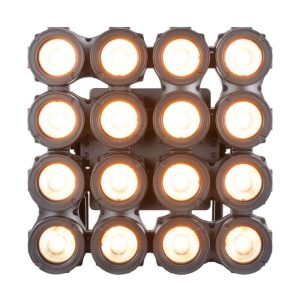

4×4 Matrix Array of 16x40W DTW COB LEDs

Full Pixel Control with Pixel Flip Modes

16-bit Dimming and Variable Dimming Curve Modes

Convection Cooled – No Fans for Noise-Sensitive Applications

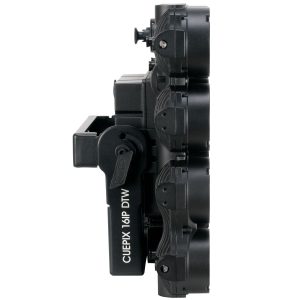

90° Adjustable and Fixed Yoke Brackets w/3-Position Holes

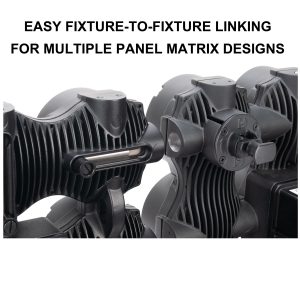

Integrated Fixture-to-Fixture Interlocking Alignment Pins/Locks

Optional 1/4 Turn Omega Brackets Available

Specifications

SOURCE16x40W DTW COB LEDs

50,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

10,000+ Total Lumen Output

22.6 ° Beam / 41.3° Field Angles

1929 LUX 179 FC @16.4′ (5m) (Full ON)

EFFECTS

Full Pixel Control with Pixel Flip Modes

High Speed Electronic Shutter and Strobe

16-Bit Dimming and Variable Dimming Curve Modes

COLOR

DTW

CONTROL / CONNECTIONS

7 DMX Channel Modes (64 total channels)

Adjustable Refresh Rate (900-25,000 (Hz)

4 Button OLED Menu Control Display

DMX, RDM, and Art-Net Protocol Support

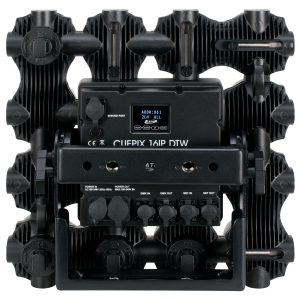

IP65 Locking 5pin XLR DMX, RJ45 Ethernet, Power In/Out

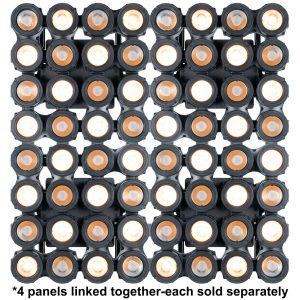

Fixture-to-Fixture Interlocking Alignment Pins/Locks

With Wired Digital Communication Network

SIZE / WEIGHT

Length: 17.32” (440mm)

Width: 8.1” (207mm)

Vertical Height: 17.31” (440mm)

Weight: 33.0 lbs. (15.0 kg)

ELECTRICAL / THERMAL

AC 100-240V – 50/60Hz

400W Max Power Consumption

14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS

CE | cETLus | IP65
