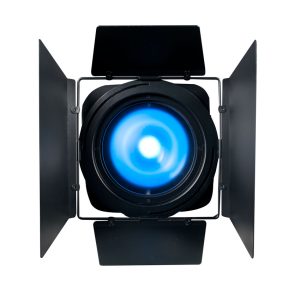

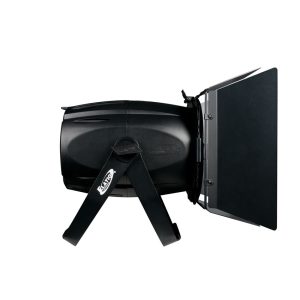

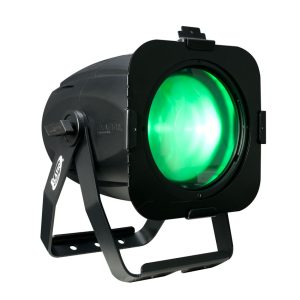

November 22, 2021Elation FUZE PAR Z175 175W Quad RGBW COB LED Par Can
The Elation FUZE PAR Z175 is a single source silent operating par with zoom. Featuring a 175W RGBW COB LED engine, 8° to 35° motorized zoom, an advanced cooling system, smooth RGBW color mixing, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable dimming curve modes, flicker free operation for TV and FILM, 3/5pin DMX and powerCON in/out connections, (4) button LCD control display panel, integrated dual rigging yokes, and a multi-voltage universal auto switching power supply (100-240v). Gel frame and barn doors included.
Features
- Single Source Silent Operating Par
- 175W RGBW COB LED Engine
- 8° to 35° Motorized Zoom
- Advanced Cooling System
- Smooth RGBW Color Mixing
- Variable 16-Bit Dimming Curve Modes
- Flicker Free Operation for TV and FILM
- Gel Frame and Barn Doors Included
SOURCE
- 175W RGBW COB LED
- 50,000 Hour Average LED Life*
- *May vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
- 15,026 LUX 1396 FC @6.6 ft (2m) (Full ON 8°)
- 3,481 LUX 323 FC @6.6 ft (2m) (Full ON 35°)
EFFECTS
- 8° – 35° Motorized Zoom
- 64 Color Presets and Color Macro Programs
- Electronic Strobe
- 16-bit Variable Dimming Curve Modes
COLOR
- RGBW
CONTROL / CONNECTIONS
- 12 DMX Channel Modes (14 Total Channels)
- 4 Button Control Panel and LCD Menu Display
- RDM (Remote Device Management)

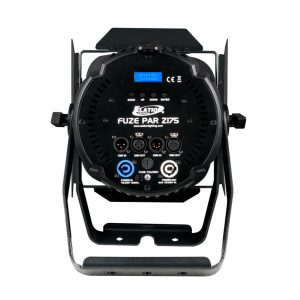

- 5pin DMX and powerCON TRUE1 In/Out
SIZE / WEIGHT
- Length: 18.2” (463mm)
- Width: 16.2” (411mm)
- Vertical Height: 17.0” (431mm)
- Weight: 20.0 lbs. (9.07kg)
ELECTRICAL / THERMAL
- AC 100-240V – 50/60Hz
- 200W Max Power Consumption
- Multiple Unit Power Linking
- 5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
- CE | IP30
INCLUDED ITEMS
- Gel Frame
- Barn Doors
- powerCON Power Cable
Brand
Elation professional
Elation professional offers the stage lighting industry the most complete toolbox of conventional and intelligent LED lighting, video, and atmospheric effect products specifically designed for the Theatrical and Concert Stage, Rental, Production, Studio, Broadcast, House of Worship, Corporate AV, Exhibition, Night Club, Leisure, Theme Park, and Cruise Ship markets.
