Elation FUZE PAR Z60 IP 60W RGBW COB Par

(1 customer review)

$1,079.00

UPC: 837874019704 SKU: FUZE-PAR-Z60-IP Category: Tags:
Elation

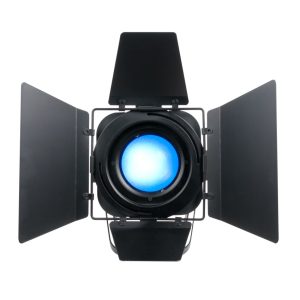

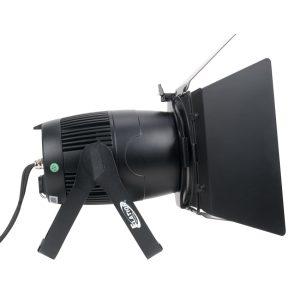

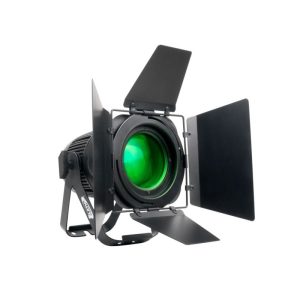

Elation FUZE PAR Z60 IP 60W RGBW COB Par

The Elation FUZE PAR Z60 is a single source silent operating par luminaire with a 60W Quad Color RGBW COB LED. Features 7° to 39° motorized zoom, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, IP rated 5pin XLR and powerCON TRUE1 in/out connections, LCD menu display with 4 touch button control panel, dual adjustable yokes, multiple unit power linking, flicker free operation for TV and FILM, a multi-voltage universal auto switching power supply (110-240v), and removable gel frame and barn doors included.

Features

  • IP65 Rated
  • 60W RGBW COB LED Par Luminaire
  • 7° to 39° Motorized Zoom Range
  • Silent Operation
  • RGBW Color Mixing
  • Dual Adjustable Yokes
  • Multiple Unit Power Linking
  • Flicker Free Operation for Broadcast TV and FILM

Specifications

SOURCE

  • 60W RGBW COB LED
  • 100,000 Hour Average Lamp Life*
  • *LED Life may vary depending on several factors including but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

  • 3,813 LUX 354 FC @9.8’ (3m) (7° Full ON)
  • 228 LUX 21 FC @9.8’ (3m) (39° Full ON)

COLOR

  • RGBW

EFFECTS

  • RGBW Color Mixing
  • 7° – 39° Beam Zoom Range
  • Electronic Strobe, Dimming and Variable Dimming Curves
  • 64 Color Presets and 14 Unique Color Macros

CONTROL / CONNECTIONS

  • 12 DMX Channel Modes (13 Total Channels)

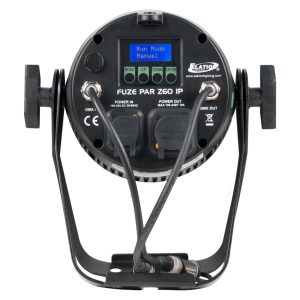

  • 4 Button Touch Control Panel and LCD Menu Display
  • RDM (Remote Device Management)
  • IP Rated 5pin DMX and powerCON TRUE1 In/Out

SIZE / WEIGHT

  • Length: 10.0″ (253mm)
  • Width: 9.9″ (252mm)
  • Vertical Height: 11.1″ (282mm)
  • Weight: 10 lbs. (4.5 kg)

ELECTRICAL / THERMAL

  • AC 110-240V – 50/60Hz
  • 78W Max Power Consumption
  • Multiple Unit Power Linking
  • 5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS

  • CE | RoHs |IP65

INCLUDED ITEMS

  • powerCON TRUE1 Power Cable
  • Gel Frame
  • Barn Door
