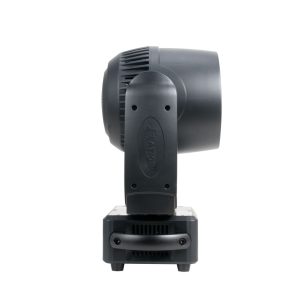

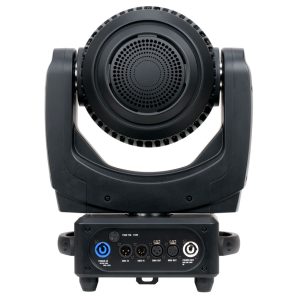

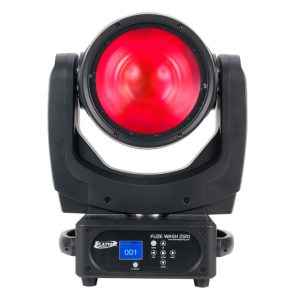

Elation FUZE WASH Z120 120W COB Moving Head

The Elation FUZE WASH Z120 is a single source par moving head luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, pan and tilt, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, DMX and power in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

Features

  • 120W RGBW COB LED Moving Head Wash Luminaire
  • RGBW Color Mixing
  • 7° TO 55° Wide Motorized Zoom Range
  • Variable Dimming Curves
  • Multiple Unit Power Linking
  • RDM (Remote Device Management)
  • Flicker Free Operation for TV and FILM

Specifications

SOURCE

  • 120W RGBW COB LED
  • 100,000 Hour Average Lamp Life*
  • *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

  • 10,640 LUX 988 FC @9.8’ (3m) (7° Full ON)
  • 692 LUX 64 FC @9.8’ (3m) (55° Full ON)

COLOR

  • RGBW

EFFECTS

  • RGBW Color Mixing
  • 7° – 55° Beam Zoom Range
  • Electronic Strobe, Dimming and Variable Dimming Curves
  • 64 Color Presets and 14 Unique Color Macros

CONTROL / CONNECTIONS

  • 4 DMX Channel Modes (19 Total Channels)
  • 7 Button Control Panel and LCD Menu Display
  • RDM (Remote Device Management)
  • 3pin/5pin DMX and powerCON In/Out

SIZE / WEIGHT

  • Length: 13.3″ (338mm)
  • Width: 9.0″ (229mm)
  • Vertical Height: 18.2″ (466mm)
  • Weight: 22 lbs. (10 kg)

ELECTRICAL / THERMAL

  • AC 110-240V – 50/60Hz
  • 157W Max Power Consumption
  • Multiple Unit Power Linking
  • 5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS

  • CE | RoHs | IP30

Brand

Elation professional

Elation professional offers the stage lighting industry the most complete toolbox of conventional and intelligent LED lighting, video, and atmospheric effect products specifically designed for the Theatrical and Concert Stage, Rental, Production, Studio, Broadcast, House of Worship, Corporate AV, Exhibition, Night Club, Leisure, Theme Park, and Cruise Ship markets.
