Elation IPC415 DMX Power Control Center

(1 customer review)

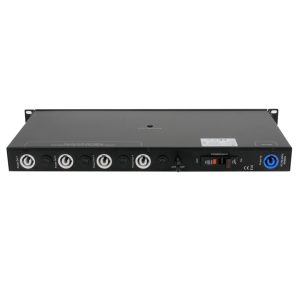

The Elation IPC415 DMX Power is an intelligent DMX power control center, featuring (4) powerCON outputs (15A max each), (4) 5pin XLR DMX outputs, (1) 5pin XLR DMX input, and (1) 5pin XLR DMX thru-put, and a multi-voltage universal auto switching power supply (100-240v).

$689.00

UPC: 837874004007 SKU: IPC415 Category: Tags:
Elation

Features of the Elation IPC415 DMX Power

  • 2 DMX Control Modes (1 / 4)
  • Internal On/Off Scheduler
  • 5pin XLR DMX Input
  • 5pin XLR DMX Output (Thru-put)
  • (4) 5pin XLR DMX Outputs
  • (4) powerCON 15 amp Outputs (NAC3MPB-1)
  • Main 20 amp Power Switch
  • powerCON Power Input (NAC3MPA-1)
  • 19-Inch Rack Mount Ears (included)

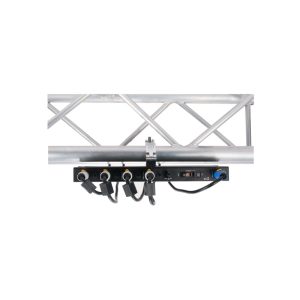

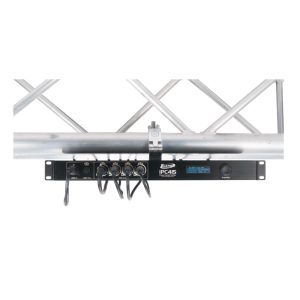

  • M10 Rigging Center Point for Truss Mounting (clamp not included)
Specifications

CONTROL / CONNECTIONS
(2) DMX Channel Modes (1 /4)
Push Button / Encoder Wheel
Internal On/Off Scheduler
OLED Control Menu Display
5pin XLR DMX Input
5pin XLR DMX Output (Thru-put)
(4) 5pin XLR DMX Outputs
(4) powerCON 15 amp Outputs (NAC3MPB-1)
Main 20 amp Power Switch
powerCON Power Input (NAC3MPA-1)

SIZE / WEIGHT
Length: 19.0” (482mm) Width: 9.1” (232mm)
Vertical Height: 1.7” (44mm)
Weight: 6.6 lbs. (3.0kg)

ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
7W Max Power Consumption (No Devices Connected)
35°F (2°C) to 113°F (45°C)

APPROVALS / RATINGS
CE | cETLus

INCLUDED ITEMSRack Ears (fits standard 19-inch single rack space)
M10 Screw Hole for Clamp (clamp not included)
Safety Cable Loop (cable not included)
