Elation Pixel Bar 120IP

(1 customer review)

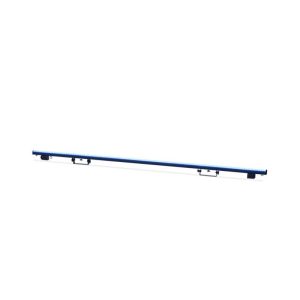

The Elation Pixel Bar 120IP is an outdoor IP65 rated LED pixel bar featuring (120) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 2 meter (6.6 feet) in length.


UPC: 837874006025 SKU: PIXEL-BAR-120-IP Category: Tags:

Features of the Elation Pixel Bar 120IP

Outdoor IP65 Rated
(120) RGB SMD LEDs | 2 meter / 6.6 feet
16mm Pixel Pitch | 44,000Hz PWM
Flicker Free Operation for Broadcast TV and FILM

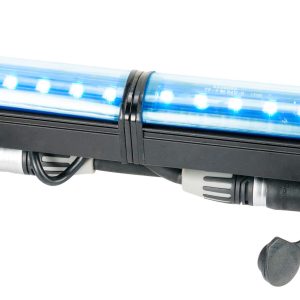

Magnetic End Caps – Seamless End-to-End Spacing
Integrated Adjustable Mounting Brackets (x2)

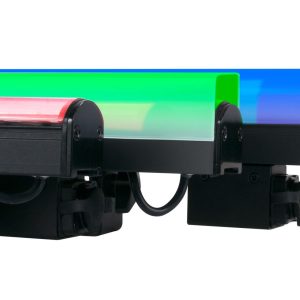

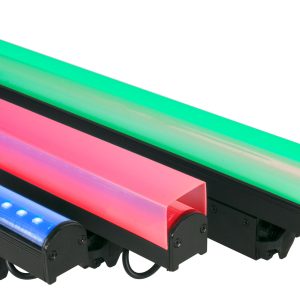

Square and Rounded Frosted Lens Included

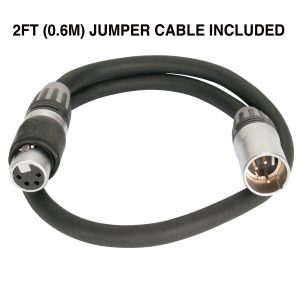

2ft (0.6m) Power/Data Jumper Cable included
Proprietary IP Rated Power/Data Combo Cables*
*Available in 2/3/5/10/12/15/20/25/30/50 Foot LengthsPixel Driver 4000 V2™ Controller (sold separately)

Pixel Driver 1000IP™ Controller (Sold Separately)
Manual Dimming and Strobe Control
Full Pixel Mapping Control
4,080 Pixels via Kling-Net
680 Pixels via Art-Net and sACN (streaming ACN)



0.2 SMD RGB 3-in-1 LEDs

Color Resolution: 8 bits per color (24 bits per pixel)

Viewing Angle: 120 x 120 degrees

Pixels Per Meter: 60 pixels

Pixel Pitch (pixel center-to-center) 16mm

PWM (Pulse Width Modulation): 44,000Hz

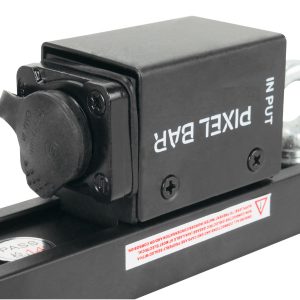

4pin Power/Data In/Out


Length: 75.9” (1928mm)

Width: 1.3” (34mm)

Height: 3.3” (83mm)

Weight: 4.4 lbs. (2.0kg)


Max Power Consumption: 24W


(1) Frosted Square LED Lens Cover (Included)

(1) Frosted Round LED Lens Cover (Included)

(1) Stealth Gray LED Lens Cover (Included)

(1) Stealth Gray LED Lens Cover (Included)


CE | cETLus | IP65


Elation professional

Elation professional offers the stage lighting industry the most complete toolbox of conventional and intelligent LED lighting, video, and atmospheric effect products specifically designed for the Theatrical and Concert Stage, Rental, Production, Studio, Broadcast, House of Worship, Corporate AV, Exhibition, Night Club, Leisure, Theme Park, and Cruise Ship markets.

GTR Direct is a proud dealer for Elation professional Canada
