Elation Pixel Driver 4000

(1 customer review)

The Elation Pixel Driver 4000 is designed specifically for the Elation Pixel Bar 30IP, 60IP, and 120IP series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net, and 680 max pixels via Art-Net and sACN (streaming ACN) protocols.


UPC: 837874006049 SKU: PIXEL-DRIVER-4000 Category: Tags:

Features of the Elation Pixel Driver 4000

Power/Data Supply for Elation Pixel Bar 30IP, 60IP, and 120IP
Simple On-Board Manual Dimming and Strobe Control
Kling-Net, Art-Net, and sACN Protocol Support
4,080 Max Pixel Mapping via Kling-Net
680 Max Pixel Mapping via Art-Net and sACN

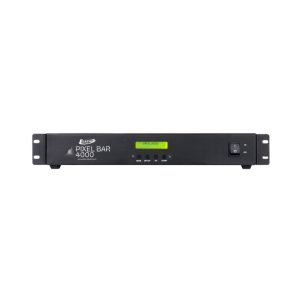

19-inch (483mm) Rack Mount Kit Included

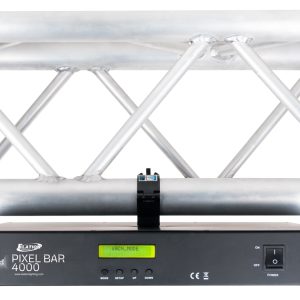

Truss Mounting Options (clamp not included)
Multi Unit Linking via RJ45 Ethernet
(4) Outputs

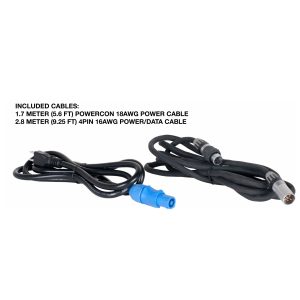

5.65ft (1.7m) Power Cable Included
9.25ft (2.8m) 16AWG Power/Data Cable Included
Proprietary IP Rated Power/Data Combo Cables*
*Available in 2/3/5/10/12/15/20/25/30/50 Meter Lengths



Manual RGB Mode

Internal Programs

Art-NET | sACN | Kling-NET

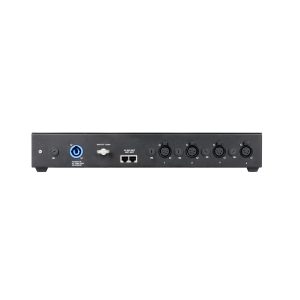

2 RJ45 Ethernet Ports

4 4pin Power/Data Outputs


Length: 16.7” (425mm)

Width: 11.9” (301mm)

Height: 2.9” (74mm)

Weight: 9.5 lbs. (4.3kg)


AC 100-240V – 50/60HZ

800W Max Power Consumption

-4°F to 113°F (-20°C to 45°C)


CE | cETLus

Specifications and documentation subject to change without notice.


Elation professional

Elation professional offers the stage lighting industry the most complete toolbox of conventional and intelligent LED lighting, video, and atmospheric effect products specifically designed for the Theatrical and Concert Stage, Rental, Production, Studio, Broadcast, House of Worship, Corporate AV, Exhibition, Night Club, Leisure, Theme Park, and Cruise Ship markets.

GTR Direct is a proud dealer for Elation professional Canada
