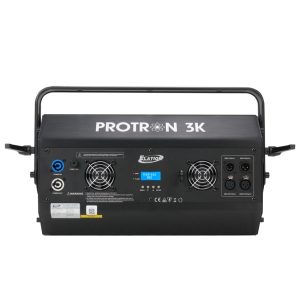

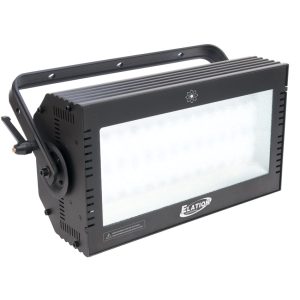

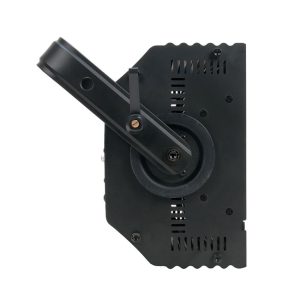

Elation Protron 3K LED Strobe
The Elation Protron 3K LED is a new high powered LED strobe featuring (200) CREE™ 3W Cool White LEDs, 80,000 lumens, 120° beam angle, (2) power modes (HIGH or LOW), strobe effect macros including burst, pulse, lighting, and full ON*, (2) silent cooling fans, electronic dimming.
Features of the Elation Protron 3K LED
- 120° Beam Angle
- (2) Power Modes (HIGH and LOW)
- (2) Silent Cooling Fans
- (202) CREE™ 3W Cool White LEDs
- 80,000 Total Lumens
- 50,000 Hour Average LED Life**
**LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- 16,450 LUX 1,528 FC @3.3’ (1m) (120° Full ON)
- Electronic Dimming
- Burst, Pulse, Lighting, Full ON*
*Thermally regulated output at full max 10 seconds.
CONTROL / CONNECTIONS
- 3 DMX Channel Modes (1 / 2 / 3 / 4)
- 4 Button Control Panel
- LCD Menu Display
- 3/5pin DMX In/Out
- powerCON In/Out
- Power Link Up To (2) Units at 120V
SIZE / WEIGHT
- Length: 21.5” (546mm)
- Width: 6.9” (175mm)
- Vertical Height: 11.7” (296mm)
- Weight: 17.2 lbs. (7.8kg)
ELECTRICAL / THERMAL
- AC 100-240V – 50/60Hz
- 900W Max Power Consumption
- Max Ambient Temperature 113°F (40°C)
Elation professional offers the stage lighting industry the most complete toolbox of conventional and intelligent LED lighting, video, and atmospheric effect products specifically designed for the Theatrical and Concert Stage, Rental, Production, Studio, Broadcast, House of Worship, Corporate AV, Exhibition, Night Club, Leisure, Theme Park, and Cruise Ship markets.
