Elation RDMX6S 6-way RDM/DMX Data Splitter

(1 customer review)

The Elation RDMX6S 6-way RDM/DMX is an easy-to-use RDM E1.20 compliant 6-way RDM/DMX data splitter featuring a 5pin DMX input, a 5pin DMX loop thru output with built-in termination, and (6) opto-isolated 5pin DMX outputs. Housed in a die-cast aluminum housing, it features a multi-voltage universal auto switching power supply (100-240v).


UPC: 837874019261 SKU: RDMX6S Category: Tags:

Features of the Elation RDMX6S 6-way RDM/DMX:

  • RDM E1.20 Compliant

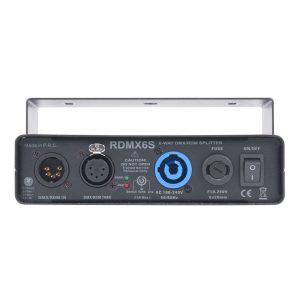

  • 5pin DMX Loop Thru Output with Built-In Termination

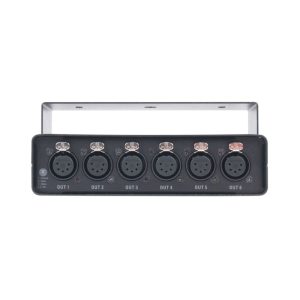

  • (6) Opto-Isolated 5pin DMX Outputs
  • powerCON In
  • Universal Multi-Voltage Auto Switching Power Supply

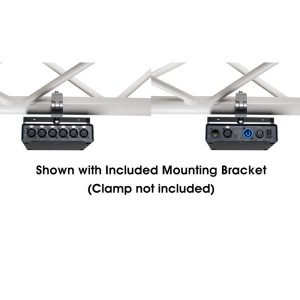

  • Mounting Bracket for Truss/Clamp Installation Included
  • Optional Single and Dual Unit Rack Mount Kits Available



  •  5pin DMX Input
  •  5pin DMX Lopp Thru Output w/Built-In Termination
  •  (6) 5pin Opto-Isolated DMX Outputs
  •  powerCON In


  •  Length: 6.8” (173mm)
  •  Width: 6.7” (170mm)
  •  Vertical Height: 2.9” (74mm) (with mounting bracket)
  •  Weight: 2.1 lbs. (1.0kg)


  •  AC 100-240V – 50/60Hz
  •  3W Max Power Consumption
  •  14°F (-10°C) to 113°F (45°C)


Elation professional

Elation professional Canada offers the stage lighting industry the most complete toolbox of conventional and intelligent LED lighting, video, and atmospheric effect products specifically designed for the Theatrical and Concert Stage, Rental, Production, Studio, Broadcast, House of Worship, Corporate AV, Exhibition, Night Club, Leisure, Theme Park, and Cruise Ship markets.

GTR Direct is a proud dealer for Elation professional Canada
