Elation Seven Par 19 IPTM outdoor PAR fixture

(1 customer review)

The Elation Seven Par 19 is an IP65 outdoor rated seven color par wash luminaire with (19) 25W 7-in-1 RGBAW + Lime + UV LEDs (Red, Green, Blue, White, Amber, Lime, and a 395nm UV) producing up to 9,300 total output lumens and 90CRI. Features include individual hue, saturation.

$1,469.00

UPC: 837874006902 SKU: SEVEN-PAR-19-IP Category: Tags:
Elation

Features of the Elation Seven Par 19

IP65 Outdoor Rated Seven Color Par Wash Luminaire
(19) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
9,300 Total Output Lumens | 90CRI
Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
Smooth Color Mixing
12 Internal Programs with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Modes
Adjustable LED Refresh Rate + Gamma Brightness
Flicker Free Operation for TV and FILM
DMX and RDM Protocol Support
IP65 Rated 5pin XLR and Power In/Out
Dual Adjustable Yoke / Floor Stand
Multiple Unit Power Linking
Rugged Powder Coated Die-Cast Aluminum Exterior
Gel Frame and Gel Frame Holder Included

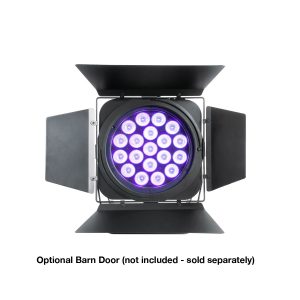

Optional 4-Leaf Barn Door Available
Specifications

SOURCE
(19) 25W 7-IN-1 RGBAW + Lime + UV (395nm) LEDs
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
9,300 Total Lumen Output | 90CRI
10,551 LUX 981 FC @6.6’ (2m) (Full ON)

EFFECTS
Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Effects

COLOR
RGBAW + Lime + UV (395nm)

CONTROL / CONNECTIONS
(7) DMX Channel Modes (15 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
RDM (Remote Device Management) Protocol Support
IP Rated 5pin DMX and Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 14.0” (357mm)
Width: 14.6” (371mm)
Vertical Height: 11.2” (284mm)
Weight: 25.0 lbs. (11.3kg)

GEL FRAME

Length: 12″ (305mm)

Vertical Height: 12″ (305mm)

Inner Diameter: 9″ (229mm)

ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
500W Max Power Consumption
5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP65

Brand

Elation professional

Elation professional offers the stage lighting industry the most complete toolbox of conventional and intelligent LED lighting, video, and atmospheric effect products specifically designed for the Theatrical and Concert Stage, Rental, Production, Studio, Broadcast, House of Worship, Corporate AV, Exhibition, Night Club, Leisure, Theme Park, and Cruise Ship markets.
