ProX XT-CDF12 Folding Plate with Dual Truss Clamp For Moving Heads Stage Lighting

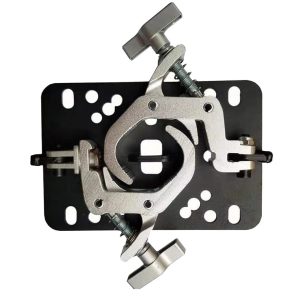

ProX XT-CDF12 Foldaway Double Clamp Mount is a unique way to mount your moving heads to trussing or single tubes, but also to speed up the setup of lighting by being able to fold them away and put the moving heads into a flight case without removing the clamps. This clamping plate is Ideal for moving heads, Professional Stage lighting, other and various types of Audio and DJ equipment

The XT-CDF12 has one fixed direction clamp and one rotatable clamp for easy and secure mounting and is both attached to the heavy-duty steel mounting plate.  The plate is designed with multiple holes for mounting to just about any brand or type of light or other equipment.

The Foldaway Double Clamp Mount fills a missing gap in the mounting, storage, and transport of moving-head lights and similarly mounted fixtures. Riggers, Lighting Designers, Production Companies, disc jockeys, and others use moving head fixtures. Traditionally, the fixtures are placed in cases but need the mounting clamps removed in order to close the tops of the road cases. The Foldaway Double Clamp Mount does not require removal from the light fixture to fit in standard moving head flight cases. This will speed up the teardown and setup of lighting.

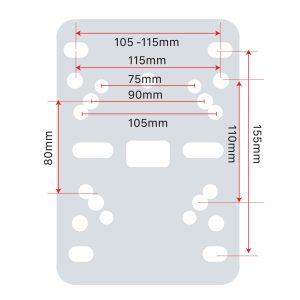

The black powder-coated mounting plate is drilled for 115mm X 105-115mm, 155mm X 115mm, 90mm X 80mm, and more.   The big wing nuts have both flat & lock washers and the clamps are designed to stay open using the captive coil spring.   In the open and flat positions, they interlock on the mounting plate for compact transport.   The entire assembly takes up approximately 1 1/4″ (32mm) in the folded position.   The strong mounting assembly will hold even the heaviest professional lights.

  • For use with 2″ – 50mm Truss Tubes or Pipe
  • Heavy-Duty Aluminum Clamps
  • Exclusive ProX Design ©2019 – Patent Applied For
  • Black Powder-Coated Mounting Plate
  • TÃœV Certified Welding & Construction
  • Manufactured to Exacting Specifications in our Own Factory!

TÃœV Certified Welding TÃœV Rheinland® is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TÃœV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry standard dimensions to be compatible to connect to, and work with, many other manufacturers F31/F32/F34 trussing products with conical connectors.

Mounts to 2″ Poles and F34, F32, F31, F33, F44b, and 12″ Bolted Trussing.

Weight 2 lbs
Dimensions 4 × 8 × 2 in


ProX Live Performance Gear

ProX Live Performance Gear makes products that are designed for professionals, by professionals. Our motto is simple; "Quality, without compromise". We believe the highest quality of components met with cutting edge design allows us to achieve our goals at a competitive price point. In 1984 ProX Started by manufacturing flight cases for broadcasting production and touring companies. Now specializing in manufacturing specific DJ controller cases for brands like Pioneer, Yamaha and DiGiCo as well as products like lighting cases, stands, cables, and bags.

All cases use CNC technology, during the manufacturing process, to assure that cases are consistently built with strict specifications and tolerances that are required for the high-quality standards that ProX cases have been known for. ProX Listens to customer feedback and consistently create outstanding solutions for all your needs. The Flip-Ready cases are manufactured in Poland and are handcrafted for quality control and individually tesfad for smooth operation. The Flip-Ready design allows for easy, one person, instead of four, movement from the transport position to operational position with virtually no effort.
