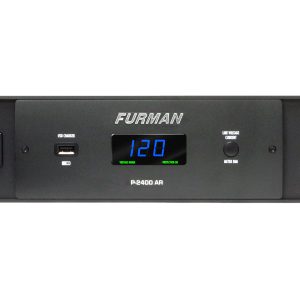

Furman P-2400 AR 20 Amp Voltage Regulator / Power Conditioner

(1 customer review)

The Furman P-2400 AR 20 Amp Voltage Regulator / Power Conditioner accepts input voltage between 97V-137V and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance.

$3,400.00

UPC: 654061028192 SKU: P2400-AR Category: Tags:
Furman Canada

Features of the Furman P-2400 AR 20 Amp Voltage Regulator / Power Conditioner:

  • True RMS Voltage Regulation
  • True RMS Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC lne voltage irregularities.
  • Surge Protection
  • Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
  • Noise Filtration
  • LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
  • Voltage Protection
  • Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
  • Diagnostic Lights
  • LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
  • Voltmeter / Ammeter
  • Large LED voltmeter/ammeter displays incoming voltage and output current draw .
  • Isolated Banks
  • Isolated outlet banks minimize inter-component interference and noise contamination.
  • USB Charger
  • Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.
  • 20 Amp Rating
  • 20 Amp rating featuring a high inrush thermal circuit breaker for added protection.
  • 14 Total Outlets

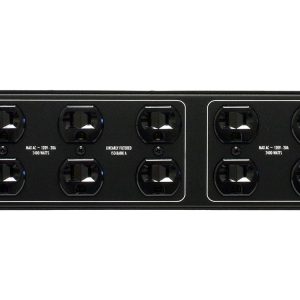

  • 14 total outlets (twelve rear panel outlets and two front panel convenience outlet).
Specifications

General

  • Family Prestige Series
  • Line Voltage 120 (Volts)
  • Number of Outlets 14
  • Number of Isolated Banks2
  • Outlet Descriptions All 14 outlets regulated and conditioned – 12 on the rear panel and 2 on the front
  • Rack MountableYes
  • Rack Ears Included Yes
  • Front Panel Meter(s)LED voltmeter/ammeter displays incoming voltage and input current draw
  • Front Media Light(s)No
  • Control Front panel:
    – On/Off switch
    – Voltage meter dimmer button
  • Voltage Regulation Regulation capture range:
    97 VAC to 137 VAC
  • Compliances ETL us
  • USB Charging front panel USB charger
  • Low Voltage Trigger N/A
  • AC Power Cord 10 ft. captive 3/12 AWG, black cord with NEMA 20 plug
  • Dimensions 19″ W x 12″ D x 3.5″ H
  • Weight 39 lbs
  • Power Consumption 13 Watts

AC Protection

  • AC Protection Technology True RMS Voltage Regulation
    Extreme Voltage Shutdown
    Non-sacrificial protection with zero ground contamination
  • Under-Voltage Shut off 90V
  • Over-Voltage Shut off 145 VAC
  • Maximum Current Rating 20 (Amps)
  • Initial Clamping Level 188 VAC peak @ 3,000 Amps
  • Filtration
  • Filtration Technology LiFT
  • Filtration Rating 1 0 dB @ 10 KHZ
    40 dB @ 100 KHZ
    50 dB @ 500 KHZ
  • Signal Line Protection No

Other Specifications

  • Response Time:1 Nanosecond
    Maximum Surge Current:
    6,500 AMPS
  • Master Pack Qty 2

Brand

Furman

Furman power products are the most trusted in the world by artists, A/V professionals, the recording industry and technology integration firms for premium power conditioning, protection, regulation, sequencing and distribution.

Our clients include hundreds of thousands of the most renowned musicians, recording studios, commercial contractors and touring groups that handle major concert tours across North America and around the globe. They choose Furman products because of the road-tested reputation for reliability, engineering expertise and 40+ years of experience focusing on the specific needs of industry professionals who cannot ever afford equipment failure or downtime.

Furman Canada has earned its reputation of trust around the world thanks to the billions of dollars of equipment saved from power problems and because of our innovative, leading technologies that maximize an A/V system’s power and performance. For our customers, operating a system without the safe, clean power delivered by a Furman unit is simply out of the question. For fans, we put our mind, heart and soul into every product we build because that’s what our customers do with their entertainment and their systems.

FURMAN IS PART OF THE NORTEK CONTROL FAMILY

Nortek Security & Control LLC is a global leader in smart connected devices and systems for residential and commercial customers, serving the security, access, AI, health & wellness, control and power/AV markets. Nortek Control and its partners have deployed more than 5 million connected systems and over 25 million security and home control sensors and peripherals. Through its family of brands, the company designs solutions for national telecoms, big-box retailers, OEM partners, service providers, dealers, technology integrators and consumers. Headquartered in Carlsbad, Calif., Nortek Control has over 50 years of innovation and is dedicated to addressing the lifestyle and business needs of millions of customers every day.

GTR Direct is a proud dealer for Furman Canada
Furman Canada
Weight 45.4 lbs
Dimensions 23.9 × 22.8 × 10.4 in
