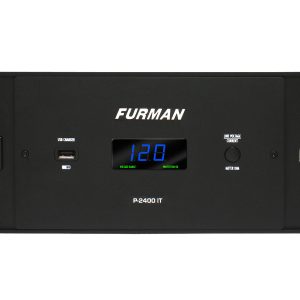

Furman P-2400 IT 20 Amp Symmetrically Balanced Power Conditioner
The Furman P-2400 IT 20 Amp Symmetrically Balanced Power Conditioner features over 80 dB of common-mode and over 50 dB of differential-mode noise reduction for recording, mastering, and broadcast studios, or anywhere noise-free performance is critical. With 100% isolation from line, neutral, and ground.
Features of the Furman P-2400 IT 20 Amp Symmetrically Balanced Power Conditioner:
- Symmetrically Balanced Power
- Symmetrically balanced power virtually eliminates common mode noise for the lowest noise floor possible.
- Surge Protection
- Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
- Noise Filtration
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
- Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
- Diagnostic Lights
- Protection OK, Extreme Voltage and color-coded voltage range indicators provide information on power quality and operational status of unit.
- Voltmeter / Ammeter
- Large LED voltmeter/ammeter displays incoming voltage and output current draw.
- Isolated Banks
- Isolated outlet banks minimize inter-component interference and noise contamination.
- USB Charger
- Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.
- 20 Amp Rating
- 20 amp rating featuring a high inrush magnetic circuit breaker for added protection.
- 14 Total Outlets
- 14 total outlets (twelve rear panel outlets and two front panel convenience outlet).
- Family Prestige Series
- Line Voltage 120 (Volts)
- Number of Outlets 14
- Number of Isolated Banks 2
- Outlet Descriptions All outlets balanced, filtered, and protected. Rear panel: 10 ultra-low resistance Hubbell outlets, 2 GFCI outlets. 2 front panel convenience outlets.
- Rack Mountable Yes
- Rack Ears Included Yes
- Front Panel Meter(s) LED voltmeter/ammeter displays incoming voltage and output current draw
- Front Media Light(s) No
- Control Front panel:
– On/Off switch
– Voltage meter dimmer button
- Voltage Regulation No
- Compliance NRTL-C
- USB Charging 1 front panel USB charger
- Low Voltage Trigger N/A
- AC Power Cord 10 ft. captive 3/12 AWG, black cord with NEMA 5-20 plug
- Dimensions 19″ W x 14″ D x 5.25″ H
- Weight 90 lbs
- Power Consumption 26 Watts
- AC Protection Technology Extreme Voltage Shutdown
Series Multi-Stage Protection
Non-sacrificial protection with zero ground contamination
- Under-Voltage Shutoff 90V
- Over-Voltage Shutoff140 VAC
- Maximum Current Rating 20 (Amps)
- Initial Clamping Level 188 VAC peak @ 3,000 Amps
- Filtration Technology Lift, Isolated Symmetrically Balanced Power
- Filtration Rating Transverse Mode:
10 dB @ 10kHz
40 dB @ 100 KHz
50 dB @ 500kHzCommon Mode:
80 dB @ 20 kHz
40 dB @ 20 kHz to 1MHz
- Signal Line Protection No
- Response Time: 1 Nanosecond
- Maximum Surge Current: 6,500 Amps
- Master Pack Qty 1
|Dimensions||24 × 23 × 13.1 in|
