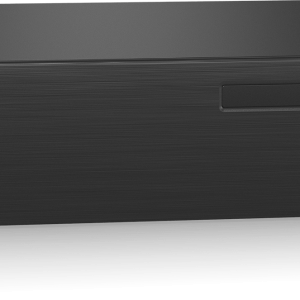

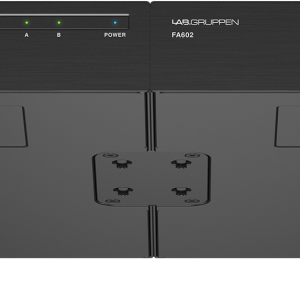

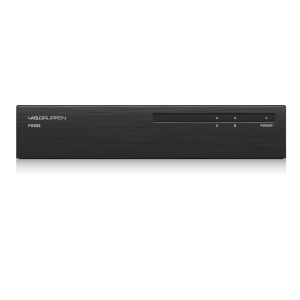

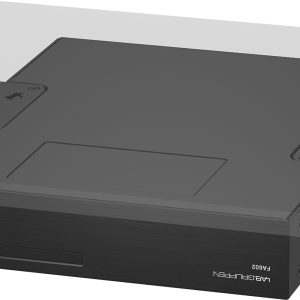

Lab Gruppen FA602 Commercial Amplifier

(1 customer review)

The Lab Gruppen 2 x 60W Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations.


UPC: 4033653090766 SKU: LAB-FA602 Category: Tags:
Lab Gruppen Canada

Features of the Lab Gruppen 2 x 60W Amplifier with Direct Drive

  • 2 x 60 Watt amplifier for commercial and industrial applications
  • Low-Z (4/8 Ohm) and High-Z (70/100 V) operation per output with switchable high-pass filter
  • Energy Star* certified design conserves energy and drastically reduces operational cost
  • Direct drive, constant power technology for superior audio performance and reliability
  • GPI remote volume control using standard RJ-45 connector and Ethernet cable
  • Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
  • Tamperproof gain controls for each channel on rear panel location
  • Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
  • Euroblock type amplifier input and output connectors
  • Convection-cooled, fan-less amplifier technology for low noise
  • Comprehensive fail safe circuit protection ensures continued operation



Maximum Output Power
4 or 8 Ω per channel 60 W
Number of Output Channels
Number 2
Minimun Load Impedance
4 Ω mode 4 Ω
8 Ω mode 8 Ω
70 V output mode 82 Ω
100 V output mode 166 Ω
Front N/A

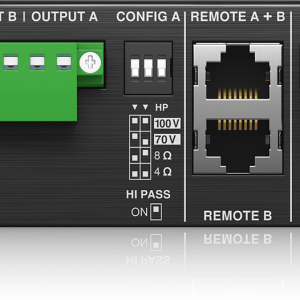

Rear Gain control, input sensitivity select (4 dBu / -10 dBV), load config (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter
Power On (blue), standby (yellow)
Limit (red LED), per channel Input clip, output limit
Signal (green LED), per channel >1.23 mV (-56 dBu)
Fault (red LED) Overheat, DC fault, over current etc
Inputs 2 x 3-pin 5.08 mm Euroblock connector
Input impedance Balanced: 1.23 V (+4 dBu) or 316 mV (-10 dBV)
Maximum input level 9.75 V (+22 dBu)
Outputs 1 x 4-pin 5.08 mm Euroblock connector
Output circuit type Class D
Remote connector 2 x RJ45 Ethernet connector
Distortion, 1/8 rated power <0.5%
Frequency response 20 Hz to 20 kHz, +0.5 / -1 dB
Crosstalk >65 dB
Signal-to-noise >100 dBA
High-pass filter 80 Hz HPF
Circuit Protection
Cooling Convection-cooled, fanless
Amplifier protection Thermal protection, overcurrent protection, DC protection, high frequency protection
Load protection Controlled start and shutdown behaviour, DC-fault protection
Power Supply, Voltage
Main voltage 100-240 V~, 50/60 Hz with active power factor correction
Power consumption 1/8th rated power @ 4 Ω 50 W
Mains connector Standard IEC connector
Dimensions / Weight
Dimensions (H x W x D) 44 x 218 x 280 mm (1.7 x 8.6 x 11.0″)
Weight 2.6 kg (5.7 lbs)
Finish Brushed black anodized aluminum chassis with black painted steel bottom
Approvals CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B, Energy Star 3.0



Lab Gruppen

Founded and based in Sweden over 30 years ago, Lab Gruppen has become one of the most respected professional-grade power amplifier manufacturers in the world. With its unique switch mode and other patented technologies, Lab Gruppen provides advanced power amplifiers and powered loudspeaker management systems that are utterly reliable and sonically superior. Along with its primary focus and heritage in touring and performance audio, Lab Gruppen has more recently forged a reputation in the world of installed sound – applying tour-honed design philosophies to dedicated installation platforms of peerless pedigree. All Lab Gruppen products are designed and engineered in Kungsbacka, Sweden – rigorously tested and quality assured with an industry-renown reputation for reliability and longevity. From the largest performance tours such as U2’s 360 world tour to the most prestigious permanent installations, Lab Gruppen enjoys a truly global customer base. Every Lab Gruppen product has been designed with one clear philosophy in mind: to offer our customer the best possible solution for a given application; sounding better, offering greater value and providing unrivalled peace of mind. All Lab Gruppen amplifiers share a common sonic signature, renowned for pristine audio quality across the range, a product of a pure and focused approach to amplifier design. From the flagship PLM 20000Q – the most advanced and powerful amplification and loudspeaker processing platform on the planet – to the Energy Star approved E Series  range of contractor-friendly installation amplifiers, Lab Gruppen is a by-word for ‘best in class’.
