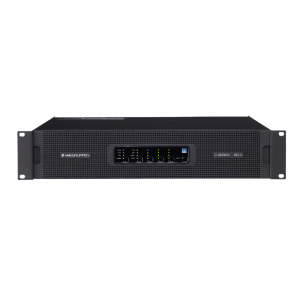

Lab Gruppen D80:4L Amplifier

(1 customer review)

The Lab Gruppen 8000 Watt is based on the same foundation of robust, high-power amplifier technologies as our renowned PLM Series – an amplifier platform with a proven record of reliability and sonic performance on the world’s most grueling concert tours and in high-profile, large-scale installations.

.

$9,180.00

SKU: LAB-D80:4L Category: Tags:
Lab Gruppen Canada

Features of the Lab Gruppen 8000 Watt Amplifier with 4 Output Channels

  • 8,000 Watt amplifier with 4 flexible output channels and up to 5,900 Watts channel output
  • Lake digital signal processing for unparalleled loudspeaker management and system control
  • Integrated 8×8 channels of dual redundant Dante* digital audio networking with AES67 support
  • 4 x 2,000 Watts into 2 Ohms, 4 x 2,000 Watts into 4 Ohms, 4 x 1,500 Watts into 8 Ohms, 4 x 750 Watts into 16 Ohms, 4 x 2,000 Watts into Hi-Z 70 V, 4 x 2,000 Watts into Hi-Z 100 V
  • Proven and reliable Class-TD output stage with proprietary Intercooler high-efficiency cooling system
  • Rational Power Management (RPM) provides total flexibility to allocate available power across all 4 output channels
  • Best-in-class Power Factor Correction (PFC) with Current Draw Modelling reduces running costs and minimizes environmental impact
  • Under-Voltage Limiting (UVL) for continued operation during severe mains supply voltage drops
  • Dedicated on-board surveillance and load monitoring for mass notification applications
  • Redundant audio inputs and on-board system surveillance for voice alarm systems
  • CAFE (Configuring Amplifiers For the Environment) software for design, system planning, equipment planning, installation and commissioning
  • Control and monitoring integration with 3rd-party matrix systems including MediaMatrix* and Q-Sys* via dedicated interfacing software
  • Dedicated front-panel mute buttons for each amplifier channel with bicolour LED indication
  • 4 “Lake Class” analog input channels with Iso-Float ground isolation for reliable audio distribution
  • 4 input channels of AES/EBU (AES3) digital audio supporting all standard sample rates up to 192 kHz with 24-bit resolution
  • 2 Neutrik etherCON* RJ-45 ports provide dual redundant Dante interfaces and remote configuration via Lake Controller and Dante Controller software
  • Balanced analog and digital audio inputs and amplifier outputs on plug-in Phoenix* connectors
  • Detachable Neutrik powerCON* cable rated at 250 V / 32 A with variety of wall plugs selectable on order
  • Removable dust filter grille for increased air circulation and simple maintenance
  • Rugged 2U rackmount chassis including rear support brackets for ease of installation



Specifications

General
Processing / Network Lake / Dante
Number of amplifier channels 4
Total burst power all channels (share among channels with RPM) 8000 W
Max output power (all channels driven)1
2 ohms 2000 W
2.67 ohms 2000 W
4 ohms 2000 W
8 ohms 1500 W
16 ohms 750 W
Hi-Z 70 V 2000 W
Hi-Z 100 V 2000 W
Max output power single channel (all models)1
2 ohms 4400 W
2.67 ohms 5900 W
4 ohms 4600 W
8 ohms 2300 W
16 ohms 1150 W
Hi-Z 70 V 3300 W
Hi-Z 100 V 4700 W
Amplifier output modules (all models, all channels)
Peak output voltage 194 V
Max. output current 67 A
Rational Power Management (RPM) Regardless of model, any channel has potential to deliver the max single channel output power (1 channel on D 80:4, 2 channels on D 120:4)
Default voltage limitation (can be lifted with RPM configuration) 155 V
Protection features Current Average Limiter (CAL), Very High Frequency Protection (VHF), Direct Current Protection (DC), Short Circuit Protection, Current-Clip Limiter, Voltage Clip Limiter, Temperature protection
Amplifier platform
Inter Sample Voltage Peak Limiter (ISVPL) Configurable Peak voltage threshold and profile
THD + N at 1 kHz and 1 dB below clipping < 0.04 %
Pilot tone generation and analysis Yes
Load impedance analysis Yes
Frequency response (1 W into 8 Ohm, 20 Hz – 20 kHz) +/- 0.05 dB
Internal Sample Rate / Data path 48 / 96 kHz / 32 bit floating point
Product propagation delay AES 96 kHz / analog input 1.61 / 1.68 ms
Lake processing
Loudspeaker processing Up to 4 modules of Classic/linear-phase/FIR crossover, EQ, delay, LimiterMax™ – peak and RMS limiters
System tuning Group control with Raised Cosine™ MESA EG™ asymmetric filters
Input redundancy / Matrix Automatic 4 level input redundancy / 4 input mixers
System integration Comprehensive 3rd party protocol over UDP Ethernet
Dante Audio Network
Dante I/O 8 x 8
Network topology / redundancy Flexible topology / Supports daisy-chained and Dual redundant networks
Sample Rates / Transport 48, 96 kHz / Uni + Multicast
Network latency 0.25, 0.5, 1.0, 2.0, 5.0 ms
AES Inputs
Inputs 2 AES inputs (4 audio channels)
Supported sample rates / resolution 44.1, 48, 88.2, 96, 176.4, 192 kHz / up to 24 bits
Sample rate conversion THD+N 20 Hz – 20 kHz unweighted 0.0000003
Analog Inputs
Inputs 4 high quality inputs with Iso-Float ground isolation
Maximum input / digital reference +26 dBu / +21 dBu
Sampling rate / Resolution 96 kHz / 24 bit
THD+N (typical at 1 kHz unweighted) 0.0000022
THD+N (typical at 20 Hz and 20 kHz unweighted) 0.0000033

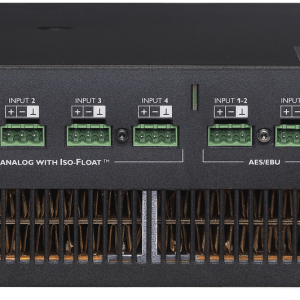

Back panel Interface
Analog inputs 4 x Terminal block connectors analog input with +, – and ground
AES inputs 4 x Terminal block connectors analog input with +, – and ground
Output connectors 4 x 2 pole Terminal block connectors rated at 1000 V / 76 A (exceeding amplifier capacity) Can take up to 16 mm2 (6 AWG) cables
Ethernet Ports 2 x EtherCon RJ45 100/1000 Base-T for the Lake Controller, Dante controller and/or DLM (3rd party protocol)
Detachable mains cord Neutrik PowerCon rated at 250V/32A
Front-panel user interface
System status indication 3 x 3 colored LED. FRAME, TEMP, PSU for device status indication
Channel status indication 3 x 3 colored LED per channel. Status indication separated for channel LOAD, AMP, SIGNAL status
Mute Per channel touch button for mute control and bicolored LED for indication
Power Touch button for ON/STANDBY control and bicolored LED for power state indication
Select Touch button and LED for bidirectional Device -Software select functionality
Mains Power
Nominal voltage 100 – 240 Volt AC 50 – 60 Hz
Operating voltage 70-265 V AC
Mains wall plug Selectable on order CEE 7/7 “Schuko” 230 V / 16 A NEMA L5-30 “Twistlock” 125 V / 30 A NEMA 5-15P 125 V / 15 A (D 80:4 only) NEMA 5-20P 125 V / 20 A (D 120:4 only) NEMA 6-20P 250 V / 20 A AS/NZS 3112 230 V / 15 A (Aus/Nz) BS 546 230 V / 16 A (India) C-30P 125 V / 30 A (Japan)
Power supply features
Soft start / Inrush power Yes/ Max 8 Ampere
Power factor correction > 0.98 for mains power > 400 W
Regulated switch mode power supply (R.SMPS) Yes
Breaker Emulation Limiter (BEL) Configurable current threshold and breaker profile
BEL max current threshold 15 A
Power Average Limiter (PAL) Yes
Under Voltage Limiter (UVL) Yes
Mains undervoltage and overvoltage protection and mains glitch tolerance Yes
Dimensions
Rack rail to rear panel W: 483 mm (19″), H: 88 mm (2 U), D: 424 mm (16″)
Overall depth front-rear support D: 463 mm
Weight
Weight 14.5 kg (32 lbs)
Finish
Finish Black painted steel chassis with grey painted steel front with detachable grille
Approvals
Approvals CE, ETL(ANSI/UL, CSA), PSE, RCM



Brand

Lab Gruppen

Founded and based in Sweden over 30 years ago, Lab Gruppen has become one of the most respected professional-grade power amplifier manufacturers in the world. With its unique switch mode and other patented technologies, Lab Gruppen provides advanced power amplifiers and powered loudspeaker management systems that are utterly reliable and sonically superior. Along with its primary focus and heritage in touring and performance audio, Lab Gruppen has more recently forged a reputation in the world of installed sound – applying tour-honed design philosophies to dedicated installation platforms of peerless pedigree. All Lab Gruppen products are designed and engineered in Kungsbacka, Sweden – rigorously tested and quality assured with an industry-renown reputation for reliability and longevity. From the largest performance tours such as U2’s 360 world tour to the most prestigious permanent installations, Lab Gruppen enjoys a truly global customer base. Every Lab Gruppen product has been designed with one clear philosophy in mind: to offer our customer the best possible solution for a given application; sounding better, offering greater value and providing unrivalled peace of mind. All Lab Gruppen amplifiers share a common sonic signature, renowned for pristine audio quality across the range, a product of a pure and focused approach to amplifier design. From the flagship PLM 20000Q – the most advanced and powerful amplification and loudspeaker processing platform on the planet – to the Energy Star approved E Series  range of contractor-friendly installation amplifiers, Lab Gruppen is a by-word for ‘best in class’.
