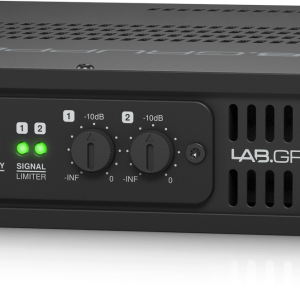

Lab Gruppen LUCIA 120/1-70 Amplifier

(1 customer review)

The Lab Gruppen LUCIA 120/1-70 incorporates Ease of Install with 120 W of Decentralised Power in a Compact Energy Star Compliant Amplifier.  In many AV applications requiring consistently outstanding performance, LUCIA offers a logical, cost-efficient and scalable solution.

$705.00

UPC: 4033653090575 SKU: LAB-LUCIA120/1-70 Category: Tags:
Lab Gruppen Canada

Features of the Lab Gruppen LUCIA 120/1-70 Amplifier

  • Compact mono amplifier which offers 120 W for high impedance speakers on 70 V distribution lines
  • Comprehensive on-board DSP with loudspeaker processing and innovative features which enhance performance and simplifies system design and commissioning
  • Configuration software wizard for initial set-up and advanced editor for preset configuration (LUCIA connection via USB) available for Windows and Mac
  • Energy efficient with Energy Star certification for supreme green credentials and exceptionally low lifetime running costs
  • Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level
  • Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter
  • Optimized presets available for a wide range of loudspeaker models for fast configuration
  • Enhanced Bass Profile for extended LF response with small loudspeakers
  • Proprietary Auto Load Sense automatically sets VPL (Voltage Peak Limiter) for optimum performance with any connected load
  • Efficient Class-D amplifier with low distortion and minimal heat dissipation
  • Compact form factor in a half-rack, 1U chassis with supplied bracket for discreet on-wall mounting
  • Configurable GPIO port for remote control (e.g. wall panel) for channel switching, level control and integration with paging systems
  • Comprehensive circuit protection for fail safe operation, including short circuit, thermal and under-voltage protection
  • Universal power supply supports 100 – 240 V AC at 50 or 60 Hz
  • Intelligent fan control for silent operation at idle and at lower output levels
  • Front panel power and fault indication as well as per-channel signal LED and attenuation knob
  • Balanced high quality analog inputs and amplifier outputs on detachable screw terminals
  • Parallel analogue input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources
  • Rackmount kit, pole-mount kit and wall panel kits available as accessories



Specifications

General
Number of amplifier channels 1
Max total output all channels driven 120 W
Max output voltage 100 Vpeak
Max output Current 3.5 Arms
Performance
70 V 120 W
100 V 1 60 W
16 ohms 120 W
Signal to Noise Ratio >100 dBA
Gain, Sensitivity and Limiters
VPL 100 Vpeak
Sensitivity, balanced input 4 dBu / 1.23 Vrms
Sensitivity, RCA input -2 dBu / 0.62 Vrms
Input headroom for clip, balanced 2 12 dBu / 3.09 Vrms
Input headroom for clip, RCA 2 6 dBu / 1.55 Vrms
Connectors and Buttons
Input connectors (per ch.) 3 – pin detachable screw terminals, electronically balanced
Input connectors (ch. 1 & 2) Unbalanced RCA type
Output connector 2 – pin detachable screw terminal
GPI 3 2 channels of voltage sense type. 4 pins in a detachable screw terminal. Default functionality is output level for GPI1 and wake up from stand by for GPI2.
GPO (power state output) 3 Contact closure type, 2 pins in a detachable screw terminal Default for external monitoring of fault/protection/power off
RS232 Can be controlled and monitored by third parties via RS232 using both the GPI pins
USB For firmware update and configuration of the signal processing and altering the default functions of the GPI ports
High pass filter This filter is in series with the other filters in the DSP and it is controlled with switches on the back. Settings OFF / 50 Hz / 80 Hz.
Level adjustment (per input) Front panel potentiometer, detented from -inf to 0 dB
Processing Features
Input processing block 4 4 EQ sections per input
Mix matrix routing block 4 2 in – 1 out mix-matrix controllable from GPI
Output processing block 4 4 EQ sections per output (presets available for many loudspeakers) User adjustable output look ahead limiter ADLC (Adaptive ISO 226 compensation)
Latency from any input to any output User adjustable from 9.15 to 137 ms
Power
Nominal voltage 100 – 240 VAC
Operating voltage 85 – 265 VAC
Standby consumption <1 W
Mains connector IEC inlet
Cooling One fan, no filter required, front to rear airflow, temperature controlled speed. Can stay off if the sustained power average stays below 12 W and the ambient temperature is below 25 C
Auto mode The power state is controlled automatically by the audio signal
Dimensions
Dimensions W: 216 mm (8.5”), H: 44 mm (1 U), D: 280 mm (11”)
Weight
Weight 1.9 kg (4.2 lbs)
Finish
Finish Black aluminum front and black steel chassis
Approvals
Approvals CE, CSA, CCC, PSE, FCC, Energy Star



Brand

Lab Gruppen

Founded and based in Sweden over 30 years ago, Lab Gruppen has become one of the most respected professional-grade power amplifier manufacturers in the world. With its unique switch mode and other patented technologies, Lab Gruppen provides advanced power amplifiers and powered loudspeaker management systems that are utterly reliable and sonically superior. Along with its primary focus and heritage in touring and performance audio, Lab Gruppen has more recently forged a reputation in the world of installed sound – applying tour-honed design philosophies to dedicated installation platforms of peerless pedigree. All Lab Gruppen products are designed and engineered in Kungsbacka, Sweden – rigorously tested and quality assured with an industry-renown reputation for reliability and longevity. From the largest performance tours such as U2’s 360 world tour to the most prestigious permanent installations, Lab Gruppen enjoys a truly global customer base. Every Lab Gruppen product has been designed with one clear philosophy in mind: to offer our customer the best possible solution for a given application; sounding better, offering greater value and providing unrivalled peace of mind. All Lab Gruppen amplifiers share a common sonic signature, renowned for pristine audio quality across the range, a product of a pure and focused approach to amplifier design. From the flagship PLM 20000Q – the most advanced and powerful amplification and loudspeaker processing platform on the planet – to the Energy Star approved E Series  range of contractor-friendly installation amplifiers, Lab Gruppen is a by-word for ‘best in class’.

GTR Direct is a proud dealer for Lab Gruppen Canada
Lab Gruppen Canada

1 review for Lab Gruppen LUCIA 120/1-70 Amplifier

  1. Chris Black

    Excellent amplifier
