Lab Gruppen LUCIA 120/2M Matrix Amplifier

(1 customer review)

The Lab Gruppen LUCIA 120/2M Matrix Amplifier Incorporates Ease of Install with 2 X 60 W of Decentralized Power in a Compact, Energy Star Compliant Amplifier. In many AV applications requiring consistently outstanding performance, LUCIA offers a logical, cost-efficient and scalable solution.

$865.00

UPC: 4033653090599 SKU: LAB-LUCIA120/2M Category: Tags:
Lab Gruppen Canada

Features of the Lab Gruppen LUCIA 120/2M Matrix Amplifier

  • Compact matrix amplifier which offers full output power across a range of loads with 2 x 60 W into 8, 4 or 2 Ohms
  • Comprehensive on-board DSP with loudspeaker processing and innovative features which enhance performance and simplifies system design and commissioning
  • 4 x 4 matrix allows mixing and routing all inputs to amplifier output channels and 2 balanced line level outputs
  • Configuration software wizard for initial set-up and advanced editor for preset configuration (LUCIA connection via USB) available for Windows* and Mac*
  • Energy efficient with Energy Star* certification for supreme green credentials and exceptionally low lifetime running costs
  • Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level
  • Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter
  • Optimized presets available for a wide range of loudspeaker models for fast configuration
  • Enhanced Bass Profile for extended LF response with small loudspeakers
  • Proprietary Auto Load Sense automatically sets VPL (Voltage Peak Limiter) for optimum performance with any connected load
  • Efficient Class-D amplifier with low distortion and minimal heat dissipation
  • Compact form factor in a half-rack, 1U chassis with supplied bracket for discreet on-wall mounting
  • Configurable GPIO port for remote control (e.g. wall panel) for channel switching, level control and integration with paging systems
  • Comprehensive circuit protection for fail safe operation, including short circuit, thermal and under-voltage protection
  • Universal power supply supports 100 – 240 V AC at 50 or 60 Hz
  • Intelligent fan control for silent operation at idle and at lower output levels

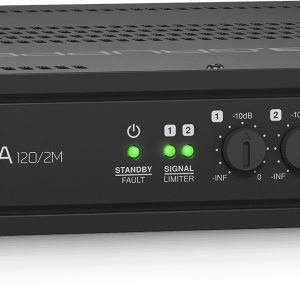

  • Front panel power and fault indication as well as per-channel signal LED and attenuation knob
  • Balanced high quality analog inputs and amplifier outputs on detachable screw terminals
  • Parallel analogue input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources
  • Rackmount kit, pole-mount kit and wall panel kits available as accessories



Specifications

General
Number of amplifier channels 2
Max total output all channels driven 120 W
Max output voltage per channel 31 V peak
Max output current per channel 5.5 Arms
Max output power (all channels driven)
2 ohms 60 W
4 ohms 60 W
8 ohms 60 W
16 ohms 30 W
Performance
THD 20 Hz – 20 kHz at 1 W into 8 ohms <0.3%
THD at 1 kHz and 1 dB below clipping <0.2%
Signal to Noise Ratio >98 dBA
Channel separation (Crosstalk) at 1 kHz >60 dBA
Frequency Response 5 Hz – 22 kHz
Input impedance 10 kOhm
Common Mode Rejection (CMR) 40 dB
Gain, Sensitivity and Limiters
VPL for 16 ohm mode 31 Vpeak
VPL for 8 ohm mode 31 Vpeak
VPL for 4 ohm mode 22 Vpeak
VPL for 2 ohm mode 15 Vpeak
Sensitivity, balanced input 4 dBu / 1.23 Vrms
Sensitivity, RCA input -2 dBu / 0.62 Vrms
Input headroom for clip, balanced 1 12 dBu / 3.09 Vrms
Input headroom for clip, RCA 1 6 dBu / 1.55 Vrms

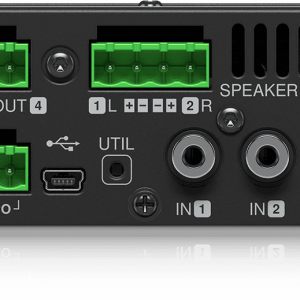

Connectors and Buttons
Input connectors (per ch.) 3 – pin detachable screw terminals, electronically balanced
Input connectors (ch. 1 & 2) Unbalanced RCA type
Output connectors (per ch.) 2 – pin detachable screw terminals
Line-level output connectors (ch. 3 & 4) 3 – pin detachable screw terminals, electronically balanced
GPO (power state output) 2 Contact closure type, 2 pins in a detachable screw terminal Default for external monitoring of fault/protection/power off
RS232 Can be controlled and monitored by third parties via RS232 using both the GPI pins
USB For firmware update and configuration for the matrix models
Level adjustment (per channel) Front panel potentiometer, detented from -inf to 0 dB
Processing Features
Input processing block 3 Default with 16 parametric EQs
Mix matrix routing block 3 4 in – 4 out mix-matrix controllable from GPI
Output processing block 3 4 EQ sections per output (presets available for many loudspeakers) User adjustable output look ahead limiter ADLC (Adaptive ISO 226 compensation)
Two line level outputs 4 Each capable of driving 10 LUCIA devices in parallel
Latency from any input to any output User adjustable from 9.15 to 137 ms
Power
Nominal voltage 100 – 240 VAC
Operating voltage 85 – 265 VAC
Mains connector IEC inlet
Cooling One fan, no filter required, front to rear airflow, temperature controlled speed. Can stay off if the sustained power average stays below 2 × 6 W and the ambient temperature is below 25 C
Auto mode The power state is controled automatically by the audio signal
Dimensions
Dimensions W: 216 mm (8.5”), H: 44 mm (1 U), D: 280 mm (11”)
Weight
Weight 1.9 kg (4.2 lbs)
Finish
Finish Black aluminum front and black steel chassis
Approvals
Approvals CE, CSA, CCC, PSE, FCC, Energy Star



Brand

Lab Gruppen

Founded and based in Sweden over 30 years ago, Lab Gruppen has become one of the most respected professional-grade power amplifier manufacturers in the world. With its unique switch mode and other patented technologies, Lab Gruppen provides advanced power amplifiers and powered loudspeaker management systems that are utterly reliable and sonically superior. Along with its primary focus and heritage in touring and performance audio, Lab Gruppen has more recently forged a reputation in the world of installed sound – applying tour-honed design philosophies to dedicated installation platforms of peerless pedigree. All Lab Gruppen products are designed and engineered in Kungsbacka, Sweden – rigorously tested and quality assured with an industry-renown reputation for reliability and longevity. From the largest performance tours such as U2’s 360 world tour to the most prestigious permanent installations, Lab Gruppen enjoys a truly global customer base. Every Lab Gruppen product has been designed with one clear philosophy in mind: to offer our customer the best possible solution for a given application; sounding better, offering greater value and providing unrivalled peace of mind. All Lab Gruppen amplifiers share a common sonic signature, renowned for pristine audio quality across the range, a product of a pure and focused approach to amplifier design. From the flagship PLM 20000Q – the most advanced and powerful amplification and loudspeaker processing platform on the planet – to the Energy Star approved E Series  range of contractor-friendly installation amplifiers, Lab Gruppen is a by-word for ‘best in class’.
