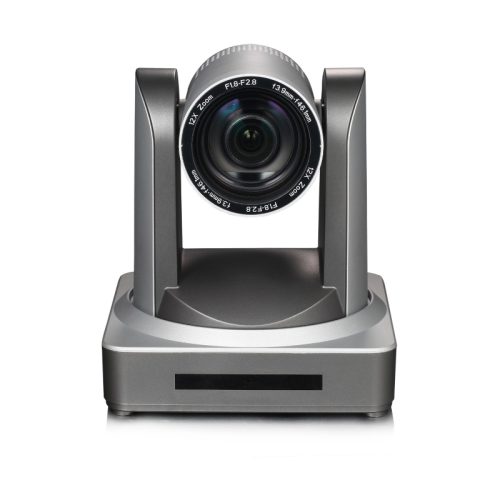

Minrray PTZ camera 12x optical zoom, USB and HDMI output

(1 customer review)

Minrray PTZ camera 12x optical zoom has perfect functions and superior performance, which adopts advanced ISP processing algorithms so as to provide vivid images with evenly clear brightness, strong color layering, high resolution, and fantastic color rendition.


SKU: MINRRAY - UV401A Category: Tags:
Minrray logo Canada

Features of the Minrray PTZ camera 12x optical zoom, USB and HDMI output:

  • Brushless Motor

Built-in brushless DC motor with Variable Speed Technology, which make pan/tilt features extremely quiet PTZ, super speed, high accurate presets, closed-loop control etc.

  • 4K Ultra HD Image

UV401 adopts 1/2.5, 1/1.7 inch, 12.40 megapixel high quality SONY CMOS sensor. Resolution is up to 4K with frame rate up to 60fps.

  • Multiple Optical Zoom Lens

12X optical zoom lens offer 82.6°/ 80.4° wide angle without distortion.

  • Leading Auto Focus Technology

Leading autofocus algorithm makes lens auto focus more quickly, accurately and stably.

  • Low Noise and High SNR

Low Noise CMOS effectively ensure high SNR of camera video. The adoption of advanced 2D/3D noise reduction technology not only further reduces the noise, but also ensuring image sharpness.

  • Multiple Video Output Interfaces

Support HDMI, USB3.0, LAN. HDMI, LAN support audio output.

  • Multiple Audio/Video Compression Standard

Support H.264/H.265 video compression, AAC, MP3 and G.711A audio compression and 3840×2160 resolution with frame rate up to 60fps compression.

  •  Audio Input Interface

Support 8000, 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, G.711A audio coding.

  • Built-in gravity sensor

Built-in gravity sensor, support the automatic flip function of the gimbal, convenient for engineering installation.

  • Multiple Network Protocols

Support ONVIF, GB/T28181,RTSP, RTMP protocols, RTMP push mode, which is easy to link streaming media serve (Wowza, FMS), RTP multicast mode and network full command VISCA control protocol.

  • Control interface

RS422(compatible with RS485), RS232; RS232 support cascade, easy to install and use.

  • Multiple Control Protocol

Support VISCA, PELCO-D, PELCO-P protocols and Automatic identification protocol.

  • Multiple Preset

Support 255 preset positions (the remote controller is set to 10 preset positions).

  • Multiple Remote Controller

Users can choose infrared remote controller or wireless remote controller according to the environmental conditions.2.4G wireless remote controller is not affected by the angle, distance, infrared interference. Support remoter signal pass through function, which is convenient for back-end use.

  • Wide Application

Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.


Optical Zoom 12X
Focus f=3.85 mm~ 43.06 mm ±5%
View Angle Horizontal: 7.59°(D) -80.4°
Vertical: 4.6°(D) – 50.0°(V)
AV F1.8 ~ F3.56±5%
Image Sensor 1/2.5 High Quality 4K SONY CMOS Sensor
Effective Pixels 8.51M, 16:9
Video Format HDMI Video Output Format:
1080P@60fps/50fps/30fps/25fps/29.97fps 1080I@60fps/50fps/59.94fps 720P@60fps/50fps/30fps/25fps/29.97fps
USB3.0 Video Output Format:
YUY2/NV12 support 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30
MJPEG/H.264 support 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 20×176P30
USB3.0 compatible with USB2.0 Video Output Format:
YUY2/NV12 support 640×360P30, 640×480P30, 320×176P30
MJPEG/H.264 support 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30
Digital Zoom 10X
Minimum Illumination 0.05Lux(F1.8, AGC ON)
White Balance Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus Auto / Manual/One key focus
Aperture F1.8 – F11,CLOSE
Electronic Shutter Auto/Manual
WDR OFF/ Dynamic level adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR ≥50dB

USB Features
Supported Operating System Windows 7, Windows8, Windows 10, Mac osx, Linux etc.
USB Audio Supported
USB Communication

Input/Output Interface
Video Output Interfaces HDMI,LAN(POE), USB3.0(Type B compatible USB2.0), RS232input, RS232output, RS422(compatible with RS485), A-in, Rotary dial, DC12V power, Power switch
Image Code Stream Double stream output
Video Compression Format LAN support H.264, H.265
USB 3.0 support MJPG, H264, YUY2, NV12
Audio Input A-IN, Double track 3.5mm linear Input
Audio Output HDMI, LAN(POE), USB3.0
Audio Compression Format AAC/ MP3/ G.711A
Lan Interface 10M/100M/1000M adaptive Ethernet Port, support POE power supply, support audio and video output
Network Protocol Support RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols. Support Remote Update, Reboot and Reset
Control Interface RS232(Input & Output), RS422(compatible with RS485)
Power Interface HEC3800 outlet (DC12V)
Power Adaptor Input: AC110V-AC220V Output: DC12V/2.5A
Input Voltage DC12V±10%
Input Current 1A
Power Consumption <12W

PTZ Parameters
Pan Rotation -170~+170°
Tilt Rotation -30°~+90°
Pan Control Speed 0.1- 120°/Sec
Tilt Control Speed 0.1-80°/Sec
Preset Speed Pan: 120°/s, Tile: 80°/Sec
Preset Number 255 presets (10 presets by remote controller)

Other Parameters
Store Temperature -10℃~+60℃
Store Humidity 20%-95%
Working Temperature -10℃~+50℃
Working Humidity 20%-80%
Dimension 157.5mm×189mm×201mm
Using environment Indoor only

Random Accessory Power supply, RS232 control cable, USB3.0 connection cable, remoter, manual, warranty card
Optional Accessories Mounting bracket



SHENZHEN MINRRAY INDUSTRY CO.,LTD. was founded in 2002, a leading unified communication camera manufacturer that integrates Research, Development, Manufacturing and Sales.  Minrray is dedicated to providing customized and professional video communication solution to enterprise and business, government and public utility, distance education, telemedicine and broadcasting to improve organizational efficiency and convenience from its establishment.

Focusing on research and development, Minrray also insists on innovation and creation. Minrray solutions leverage the power of video communications to help people connect with one another seamless to achieve great cooperation. Minrray provides complete product portfolios from HD PTZ camera, 4K PTZ camera to educational auto tracking camera, integrated video conferencing endpoint, Android-based open platform endpoint, video conferencing room solution kit and etc.

Minrray always adheres to the development concept of quality first and green manufacturing. The production process strictly implements ISO9001 quality system and ISO14001 environmental management system standards. With independent dust-free factory, mechanical production equipment, professional and experienced talent and integrating human resources with a whole collection of management, operation and service, Minrray has realized production automation, IT management and professional personnel.

Minrray Canada products are widely used into various Video conferencing system, Collaboration system, Education System, Tele-medicine, Webcasting, Government Projects, Interrogation and Emergency command systems, Office system and so on. With Excellent Quality, High Cost Performance, and 1st Class services, we got trusted and good supported from customers worldwide.
