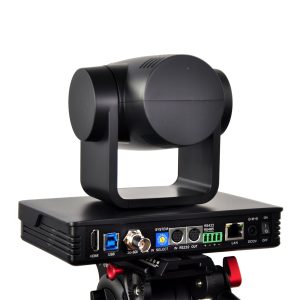

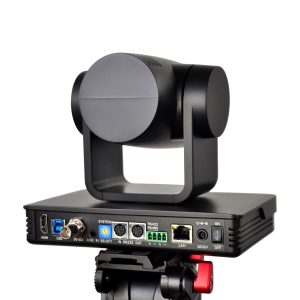

Minrray UV570S-12-SU-IR-POE camera 12x optical zoom, HDMI, USB and LAN output

Minrray UV570S-12-SU-IR-POE camera 12x optical zoom offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition.


SKU: MINRRAY - UV570S-12-SU-IR-POE Category: Tags:
Minrray logo Canada

Features of the Minrray UV570S-12-SU-IR-POE camera 12x optical zoom, HDMI, USB and LAN output:

UV570 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.

– Multiple optical lens

5X, 12X, 20X, 30X optical zoom lens for selection; 5X lens has 83 degree wide angle with little distortion.

– Leading Auto Focus Technology

Leading autofocus algorithm makes lens a fast, accurate and stable auto-focusing.

– Low Noise and High SNR

Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

– Multiple video output interfaces

HDMI, SDI, USB3.0 and LAN ports for video output. Both video and audio can be output from HDMI, SDI, LAN, USB3.0 at the same time. The transmission distance of SDI under 1080p60 is 100 meters.

– 0 supports dual code streams

Supports both main and sub-code streams output simultaneously; support YUY2, MJPEG, H.264, NV12, H.265 video encoding format.

– Built-in Gravity Sensor

Support automatic PTZ auto-flip function and easy to install.

– Multiple Network Protocols

Support ONVIF,GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS,SRT, NDI protocols and support RTMP push mode, easy to link streaming media server (Wowza, FMS).Supports RTP multicast mode.

– Control protocol

RS422(compatible with RS485), RS232-in, RS232-out, and RS232 interface supports cascade connection.

– Multiple Control Protocols

Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.

– Extremely Quiet PTZ

Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.

– Multiple Preset

Support 255 preset positions (the remote controller is set to 10 preset positions).

– Multiple Remote Controller

Users can choose infrared remote controller or wireless remote controller according to the environmental conditions.2.4G wireless remote controller is not affected by the angle, distance, infrared interference.

– Wide Application

Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.

– Low-power Sleep Function

Support low-power sleep/wake up, the consumption is lower than 400 mW under sleep mode.



SHENZHEN MINRRAY INDUSTRY CO.,LTD. was founded in 2002, a leading unified communication camera manufacturer that integrates Research, Development, Manufacturing and Sales.  Minrray is dedicated to providing customized and professional video communication solution to enterprise and business, government and public utility, distance education, telemedicine and broadcasting to improve organizational efficiency and convenience from its establishment.

Focusing on research and development, Minrray also insists on innovation and creation. Minrray solutions leverage the power of video communications to help people connect with one another seamless to achieve great cooperation. Minrray provides complete product portfolios from HD PTZ camera, 4K PTZ camera to educational auto tracking camera, integrated video conferencing endpoint, Android-based open platform endpoint, video conferencing room solution kit and etc.

Minrray always adheres to the development concept of quality first and green manufacturing. The production process strictly implements ISO9001 quality system and ISO14001 environmental management system standards. With independent dust-free factory, mechanical production equipment, professional and experienced talent and integrating human resources with a whole collection of management, operation and service, Minrray has realized production automation, IT management and professional personnel.

Minrray Canada products are widely used into various Video conferencing system, Collaboration system, Education System, Tele-medicine, Webcasting, Government Projects, Interrogation and Emergency command systems, Office system and so on. With Excellent Quality, High Cost Performance, and 1st Class services, we got trusted and good supported from customers worldwide.
