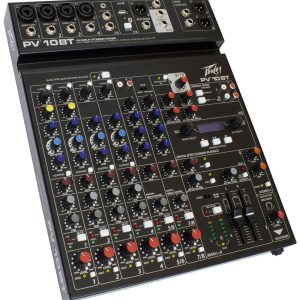

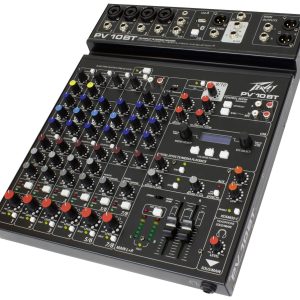

The Peavey PV 10 BT 10 Channel Compact Mixer includes four channels of reference quality mic preamps, four direct outputs for recording, a stereo channel, media channel with Bluetooth wireless input, high quality digital effects with LCD display.
Features of the Peavey PV 10 BT 10 Channel Compact Mixer with Bluetooth:
• New rugged, slim, low-profile console design
• Convenient tablet cradle
• Four combination XLR/1/4″ low noise mic preamps
• Selectable Hi Pass filter on first 4 inputs
• 3-band EQ on all channels
• Four channels of Peavey’s exclusive MidMorph® EQ
• EQ bypass per channel
• Two channels of built-in compression
• Individual channel mutes
• Individual Listen/Solo function
• LED clip and signal present indication
• Four channels of direct out
• Stereo pan control per channel
• Channel 5/6 stereo 1/4″, RCA, or 3.5 mm input channel
• Dual selectable control room outputs
• One pre-fader AUX send
• KOSMOS® bass and treble enhancement
• Main stereo outputs with 1/4″ unbalanced and balanced XLR connectors
• Precision 60mm faders on master
• High quality master LED meter bridge
• Master mic mute
• Studio quality headphone output
• Equipped with Bluetooth® wireless connectivity, Bluetooth 3.0 + EDR, A2DP
• On-board USB-A MP3 and WAV playback
• Stereo USB-B streaming audio in and out, 16-bit, up to 48 kHz sample rates
• Built-in digital effects with LCD display
• Peavey’s exclusive on-board Hi Z guitar input
• Global 48V phantom power
Specifications:
Channels (Input)
10
Channels (Output)
5
Bluetooth
Yes
USB Playback & Record
Yes
Internal Effects Engines
Yes
Input Connectors
1 x 3.5 mm Stereo Jack, 1 x Dual RCA & 1 x USB A, 2 x 1/4″ Stereo Jack, 4 x XLR Combo
Output Connectors
1 x Dual RCA, 3 x 1/4″ Jack, 3 x XLR
Footswitch
Yes
AUX Out
Yes (1 x XLR & 1 x 1/4″ Jack)
Main Out
2 x XLR & 2 x 1/4″ Jack
Phantom Power
Yes (48V)
Headphones Output
Yes (1 x 1/4″ with level control)
Rack Mount (19″)
Optional
Color
Black
Net Weight
8.2 lbs (3.73 kg)
Product Height
2.19″ (56 mm)
Product Width
12.75″ (324 mm)
Product Depth
15.10″ (384 mm)
AC Power Input
Universal Power Supply 100-240VAC 50/60 Hz
