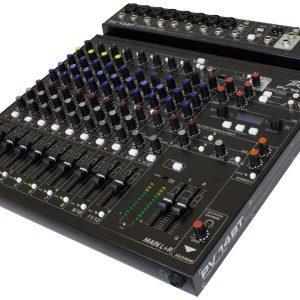

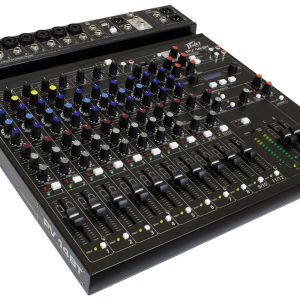

Peavey PV 14 BT 14 Channel Compact Mixer with Bluetooth
The Peavey PV 14 BT 14 Channel Compact Mixer with Bluetooth includes eight channels of reference quality mic preamps, eight direct outputs for recording, a stereo channel, media channel with Bluetooth wireless input, high quality digital effects with LCD display.
Features of the Peavey PV 14 BT 14 Channel Compact Mixer with Bluetooth:
• New rugged, slim, low-profile console design
• Convenient tablet cradle
• Eight combination XLR – 1/4″ low noise mic preamps
• Selectable Hi Pass filter on first eight inputs
• 3-band EQ on all channels
• Eight channels of Peavey’s exclusive MidMorph® EQ
• EQ bypass per channel
• Four channels of built-in compression
• Individual channel mutes
• Individual Listen/Solo function
• LED clip and signal present indication
• Eight channels of direct out
• Stereo pan control per channel
• Channel 9/10 stereo 1/4″, RCA, or 3.5 mm input channel
• Dual selectable control room outputs
• One pre-fader AUX send
• KOSMOS® bass and treble enhancement
• Main stereo outputs with 1/4″ unbalanced and balanced XLR connectors
• Precision 60mm faders
• High quality master LED meter bridge
• Master mic mute
• Studio quality headphone output
• Equipped with Bluetooth® wireless connectivity, Bluetooth® 3.0 + EDR, A2DP
• On-board USB-A MP3 and WAV playback
• Stereo USB-B streaming audio in and out, 16-bit, up to 48 kHz sample rates
• Built-in Digital Effects with LCD display
• Peavey’s exclusive on-board Hi Z guitar input
• Global 48V phantom power
Specifications:
Channels (Input)
14
Channels (Output)
5
Bluetooth
Yes
USB Playback & Record
Yes
Internal Effects Engines
Yes
Input Connectors
1 x 3.5 mm Stereo Jack, 1 x Dual RCA & 1 x USB A, 2 x 1/4″ Stereo Jack, 8 x XLR Combo
Output Connectors
1 x Dual RCA, 3 x 1/4″ Jack, 3 x XLR
Footswitch
Yes
AUX Out
Yes (1 x XLR & 1 x 1/4″ Jack)
Main Out
2 x XLR & 2 x 1/4″ Jack
Phantom Power
Yes (48V)
Headphones Output
Yes (1 x 1/4″ with level control)
Rack Mount (19″)
Optional
Color
Black
Net Weight
12.1 lbs (5.50 kg)
Product Height
2.19″ (56 mm)
Product Width
16.19″ (411 mm)
Product Depth
17.30″ (439 mm)
AC Power Input
Universal Power Supply 100-240VAC 50/60 Hz
