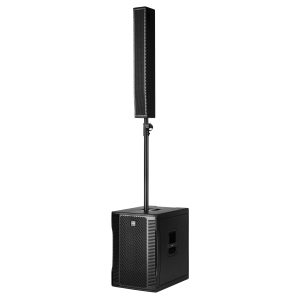

RCF EVOX 12 1400W Active Array System

(1 customer review)

The RCF EVOX 12 1400W Active Array System is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4 “full-range transducers with a phase plug.

$4,024.00

UPC: 8024530013370 SKU: RCF-EVOX 12 Category: Tags:
RCF Canada

Features of the RCF EVOX 12 1400W Active Array System:

  • 1400 Watt
  • 130 dB max SPL
  • 40 Hz 20 kHz frequency response
  • 15″ Woofer
  • 8 x 4″ neodymium full-range woofer
  • 90° x 30° slightly tilted pattern control
  • Innovative DSP processing
  • Pole mountable, easy set-up and transportation
Specifications

Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz

MAX SPL @ 1M:
130 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
30°
Transducers
FULL RANGE:
8 x 4.0”, 1.0” v.c

WOOFER:
15”, 3.0” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
180 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, EQ
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

COLOR:
Black
Size
HEIGHT:
2200 mm / 86.61 inches

WIDTH:
410 mm / 16.14 inches

DEPTH:
560 mm / 22.05 inches

WEIGHT:
36.4 kg / 80.25 lbs

Brand

RCF

SINCE 1949 RCF BEGAN PRODUCING TRANSDUCERS IN 1949.
The first products sold were microphones and loudspeakers. In the late ’60s, concert sound was going electric, and many loudspeaker pioneers were searching for high-powered devices to use in their designs. RCF was one of the first European OEM suppliers for international brands, thanks to the company’s experience gained building high power transducers. In-depth know-how in transducers and electronics provided the perfect technological culture to allow RCF to develop complete pro audio systems, bringing the company to a leading position in multiple audio markets over the years. From Hi-Fi to public address, portable loudspeakers and big concert systems.

GTR Direct is a proud dealer for RCF Canada
RCF Canada
Weight 96.76 lbs
