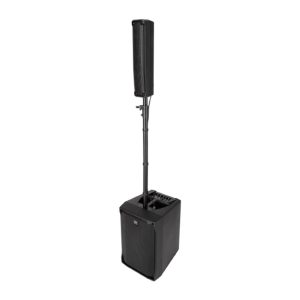

RCF EVOX JMIX8 Active 2-Way 12” Woofer

(1 customer review)

Taking the RCF EVOX JMIX8 Active 2-Way 12” Woofer one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations.

$2,374.00

UPC: 8024530015572 SKU: RCF-EVOX JMIX8 Category: Tags:
RCF Canada

Features of the RCF Evox JMIX8 Active 2-Way 12” Woofer:

  • 128 dB Max SPL
  • 1400 Watt 2-way power

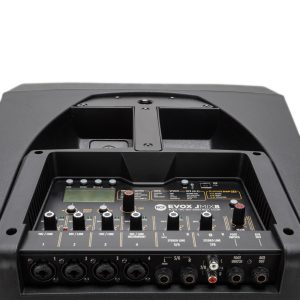

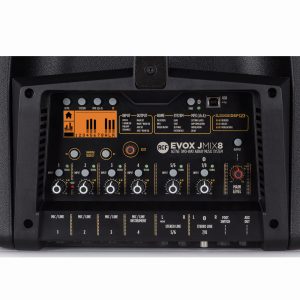

  • 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
  • DSP Processing with FiRPHASE

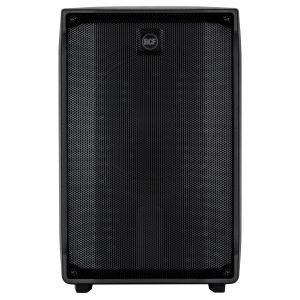

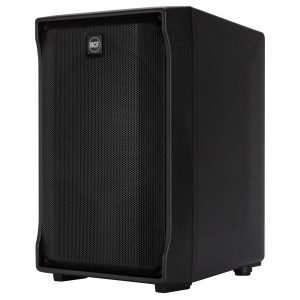

  • 12″ woofer, high power 2.5″ voice coil

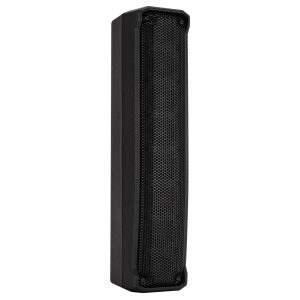

  • 8 x 2″ ultra compact full range 1.0″ voice coil
  • 2350x350x450 mm 92.5×13.77×17.71 in (HxWxD)
  • 24,4/53.8 kg/lbs
Specifications

Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz

HORIZONTAL COVERAGE ANGLE:
120°

MAX SPL @ 1M:
128 dB

VERTICAL COVERAGE ANGLE:
30°
Transducers
FULL RANGE:
8 x 2.0”, 1.0” v.c

WOOFER:
12”, 2.5” v.c
Input/Output section
INPUT CONNECTORS:
XLR, Jack

INPUT SENSITIVITY:
-2 dBu/+4 dBu

INPUT SIGNAL:
bal/unbal

OUTPUT CONNECTORS:
XLR
Processor section
CONTROLS:
Volume, Boost, Mic/Line

CROSSOVER FREQUENCIES:
220 Hz

LIMITER:
Soft Limiter

PROTECTIONS:
Thermal, RMS
Power section
CONNECTIONS:
VDE

COOLING:
Convection

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

TOTAL POWER:
1400 W Peak, 700 W RMS
Electronic specifications
FREQUENCY RESPONSE:
20 Hz ÷ 20 Hz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
0.004% A-Weighted
Processing
A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz

DYNAMIC RANGE:
108

PROCESSING CHANNELS:
8

SIGNAL PROCESSING:
32 Bit Floating Point
Inputs
A/D DYNAMIC RANGE (DB):
108 dB

GAIN RANGE:
0 dB ÷ 45 dB

GAIN SELECTION:
0 dB ÷ 45 dB

STEREO LINE GAIN SELECTION:
0 dB ÷ 45 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm

HI-Z LINE INPUTS:
1

INPUT NOISE LEVEL (DBU A-WEIGHTED):
-114 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):
3k ohm

LINE:
4

LINE INPUT IMPEDANCE (KOHM):
11k ohm

LOW CUT:
20 Hz ÷ 1000 dB

MIC:
4

PHANTOM POWER +48V:
Yes

REMOTE CONTROLLED STORABLE GAIN:
Yes

STEREO LINE:
2

STEREO LINE INPUT IMPEDANCE (KOHM):
11k ohm
Outputs
AUX OUTPUT:
1

AUX SEND:
1
Outputs specifications
AUX OUT IMPEDANCE (OHM):
150 ohm

AUX OUT LEVEL (DBU):
19 dBu

D/A DYNAMIC RANGE (DB):
108 dB

MAIN OUT IMPEDANCE (OHM):
150 ohm

MAIN OUT LEVEL (DBU):
19 dBu
Compressors
RCF COMPRESSORS:
4 mono (6 preset)
EQ
DESCRIPTION:
3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency Graphic 7 Band EQ on Main Mix and AUX send.

INPUT CHANNELS EQ:
1 Semi Parametric / 2 Shelving
Auxiliary sends
AUX:
1 PRE/POST

FX POST:
1
Internal Effects
MULTIFX INSERT EFFECTS:
1

SEND EFFECTS:
1
Mastering processors
MAIN OUT PROCESSORS:
1
USB audio
PLAY TRK:
2
Other features
FOOTSWITCH:
Yes
Electrical specifications
POWER SUPPLY:
Internal
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

COLOR:
Black, White

GRILLE:
Steel

HANDLES:
1 Top
Size
DEPTH:
460 mm / 18.11 inches

HEIGHT:
623 mm / 24.53 inches

WEIGHT:
22.2 kg / 48.94 lbs

WIDTH:
400 mm / 15.75 inches

Brand

RCF

SINCE 1949 RCF BEGAN PRODUCING TRANSDUCERS IN 1949.
The first products sold were microphones and loudspeakers. In the late ’60s, concert sound was going electric, and many loudspeaker pioneers were searching for high-powered devices to use in their designs. RCF was one of the first European OEM suppliers for international brands, thanks to the company’s experience gained building high power transducers. In-depth know-how in transducers and electronics provided the perfect technological culture to allow RCF to develop complete pro audio systems, bringing the company to a leading position in multiple audio markets over the years. From Hi-Fi to public address, portable loudspeakers and big concert systems.

GTR Direct is a proud dealer for RCF Canada
RCF Canada
Weight 63.93 lbs
Dimensions 22.87 × 17.76 × 26.61 in
