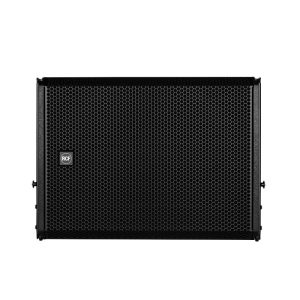

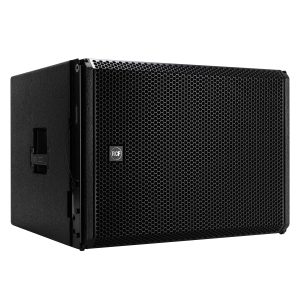

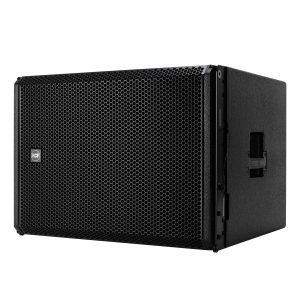

The RCF HDL 38-AS 1×18” Neodymium Woofer is the ideal flyable bass complement for the HDL 30-A array system. It features one 4.0” voice coil, 18” Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with the maximum linearity and low distortion.
Features of the RCF HDL 38-AS 1×18” Neodymium Woofer 136 dB Max SPL:
- 136 dB Max SPL
- 3200W peak class-D Amplifier
- 30-140 Hz frequency response
- RDNet Networked Management
- 1×18” Neodymium Woofer, 4.0” voice coil
Specifications:
Acoustical specifications
FREQUENCY RESPONSE:
30 Hz ÷ 140 Hz
MAX SPL @ 1M:
136 dB
Transducers
WOOFER:
18” neo, 4.0” v.c

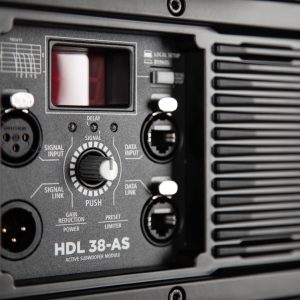

Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
+4 dBu
Processor section
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Volume, Preset selection
RDNET:
Yes
Power section
TOTAL POWER:
3200 W Peak, 1600 W RMS
LOW FREQUENCIES:
3200 W Peak, 1600 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Array fittings
HANDLES:
2 Side
POLE MOUNT/CAP:
Yes
GRILLE:
Steel
COLOR:
Black, White – RAL 9003
Size
HEIGHT:
502 mm / 19.76 inches
WIDTH:
700 mm / 27.56 inches
DEPTH:
621 mm / 24.45 inches
WEIGHT:
48.7 kg / 107.36 lbs
Weight | 112.44 lbs |
---|---|
Dimensions | 29.53 × 26.38 × 21.65 in |
