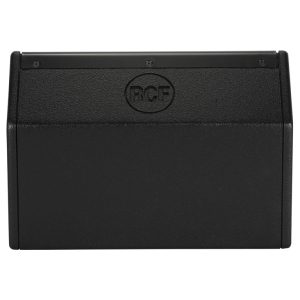

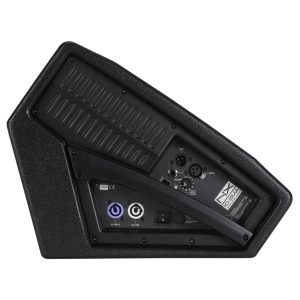

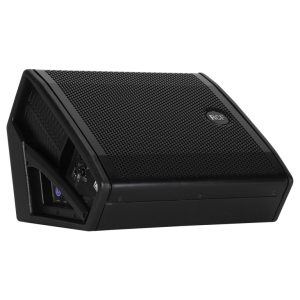

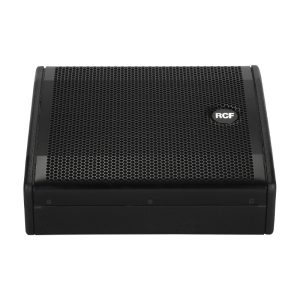

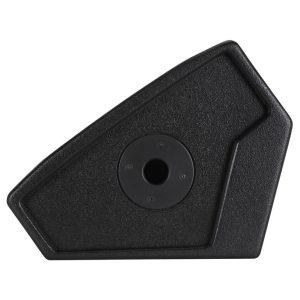

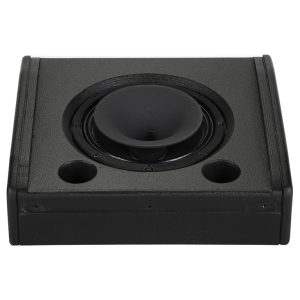

RCF NX 10-SMA 10″ Woofer 127 DB MAX SPL

(1 customer review)

The RCF NX 10-SMA 10″ Woofer 127 DB MAX SPL is equipped with new high power 400 W digital amplifier and a newly designed 10″ coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system.

$2,439.00

UPC: 8024530008833 SKU: RCF-NX 10 SMA Category: Tags:
RCF Canada

Features of the RCF NX 10-SMA 10″ Woofer 127 DB MAX SPL :

  • 800 Watt Peak, 400 Watt RMS digital bi-amplification
  •  127 dB max spl
  •  60° x 60° constant directivity horn
  •  10″ High power neodymium woofer, 2.5″ voice coil
  •  1.7 kapton dome, 1″ exit, neodymium high frequency driver
  •  DSP processing, floor – free field equalization, soft limiter and protection
  •  Combo xlr/jack input, xlr signal output
Specifications

Acoustical specifications
FREQUENCY RESPONSE:
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
127 dB

HORIZONTAL COVERAGE ANGLE:
60°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
Coaxial 1.0” neo, 1.75” v.c

WOOFER:
10” neo, 2.5” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XRL, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
+4 dBu
Processor section
PROTECTIONS:
RMS, HF

LIMITER:
Soft Limiter

CONTROLS:
Freefield, Floor
Power section
TOTAL POWER:
800 W Peak, 400 W RMS

HIGH FREQUENCIES:
200 W Peak, 100 W RMS

LOW FREQUENCIES:
600 W Peak, 300 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HANDLES:
1 on side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
324 mm / 12.76 inches

WIDTH:
450 mm / 17.72 inches

DEPTH:
417 mm / 16.42 inches

WEIGHT:
14.3 kg / 31.53 lbs

Brand

RCF

SINCE 1949 RCF BEGAN PRODUCING TRANSDUCERS IN 1949.
The first products sold were microphones and loudspeakers. In the late ’60s, concert sound was going electric, and many loudspeaker pioneers were searching for high-powered devices to use in their designs. RCF was one of the first European OEM suppliers for international brands, thanks to the company’s experience gained building high power transducers. In-depth know-how in transducers and electronics provided the perfect technological culture to allow RCF to develop complete pro audio systems, bringing the company to a leading position in multiple audio markets over the years. From Hi-Fi to public address, portable loudspeakers and big concert systems.

GTR Direct is a proud dealer for RCF Canada
RCF Canada
Weight 38.36 lbs
Dimensions 15.91 × 19.84 × 19.84 in
