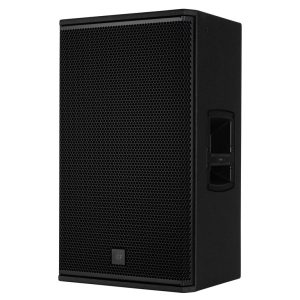

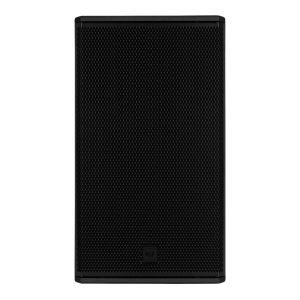

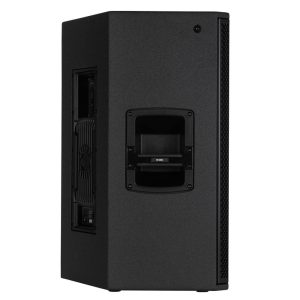

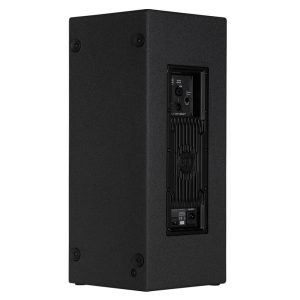

RCF NX 915-A 15″ Woofer 1.75″ Compression Driver
The RCF NX 915-A 15″ Woofer 1.75″ Compression Driver masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75″ compression driver, 15″ woofer, two-channel 2100W amplifier
$2,234.00
Features of the RCF NX 915-A 15″ Woofer 1.75″ Compression Driver :
- Up to 131 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- 45-20000 Hz linear frequency response
- 1.75″ Compression Driver
- 15″ Woofer
- FiRPHASE zero degrees phase technology
- Bass Motion Control woofer excursion management
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz
MAX SPL @ 1M:
131 dB
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.0”, 1.75” v.c
WOOFER:
15”, 2.5” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, Jack
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
1600 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Linear, Boost, Stage, Volume
Power section
TOTAL POWER:
2100 W Peak
HIGH FREQUENCIES:
700 W Peak
LOW FREQUENCIES:
1400 W Peak
COOLING:
Convection
CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Plywood
HARDWARE:
2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear
HANDLES:
1 x Side
POLE MOUNT/CAP:
Yes
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
705 mm / 27.76 inches
WIDTH:
420 mm / 16.54 inches
DEPTH:
451 mm / 17.76 inches
WEIGHT:
24.1 kg / 53.13 lbs
| Weight | 58.64 lbs |
|---|---|
| Dimensions | 18.66 × 19.92 × 29.57 in |
Brand
RCF
In 1949, RCF’s three founders conjured a bold vision based on technology that was considered niche at the time. The real breakthrough came in the '60s when concert sound began to transition from small acoustic setups to big spaces, requiring electric amplification for voices and other low-volume musical instruments. In-depth knowledge in transducers and electronics qualified RCF to develop complete audio systems, bringing the company to a leading position in multiple audio markets over the years, from OEM transducers to Hi-Fi, public address, portable speakers, recording studios, and big concert systems. RCF’s passion for perfection drives the design of every product to create enlightening, unique, and delightful experiences for our customers. All speakers and components are designed from the ground up and developed internally to maximize the end result.
