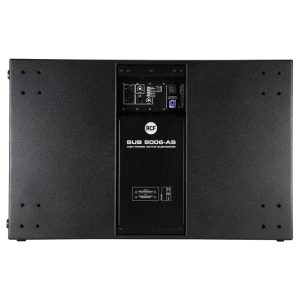

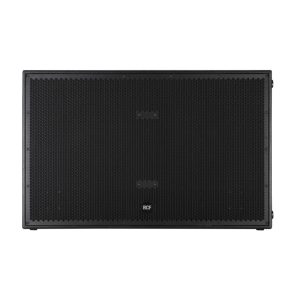

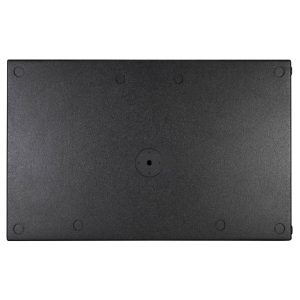

RCF SUB 8006-AS 2 X 18″ Woofer 137 DB MAX SPL

(1 customer review)

The RCF SUB 8006-AS 2 X 18″ Woofer 137 DB MAX SPL is the largest and most powerful active subwoofer in the professional series. Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency.

$9,044.00

UPC: 8024530009861 SKU: RCF-SUB 8006-AS Category: Tags:
RCF Canada

Features of the RCF SUB 8006-AS 2 X 18″ Woofer 137 DB MAX SPL:

  • 5000 Watt Peak power – 2500 Watt RMS
  • 137 dB max SPL
  • 30 Hz – 120 Hz frequency response
  • 2 x 18″ Woofer
  • DSP controlled Input section with selectable presets
  • Delay control
  • Integrated mechanics for multiple configuration with HDL 20-A
  • Baltic birch tour grade cabinet
Specifications

Acoustical specifications
FREQUENCY RESPONSE:
30 Hz ÷ 120 Hz

MAX SPL @ 1M:
137 dB
Transducers
WOOFER:
2 x 18”, 4.0” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES:
100 Hz

LOW-PASS FREQUENCIES:
80 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Fast Limiter

CONTROLS:
Xover, Phase switch, Depp/Punch, Output Delay Settings, Cardioi
Power section
TOTAL POWER:
5000 W Peak, 2500 W RMS

LOW FREQUENCIES:
5000 W Peak, 2500 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
Mounting points

HANDLES:
4 side

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
709 mm / 27.91 inches

WIDTH:
1109 mm / 43.66 inches

DEPTH:
700 mm / 27.56 inches

WEIGHT:
96.4 kg / 212.53 lbs

Weight 240.3 lbs
Dimensions 29.65 × 45.51 × 30.04 in

Brand

RCF

In 1949, RCF’s three founders conjured a bold vision based on technology that was considered niche at the time. The real breakthrough came in the '60s when concert sound began to transition from small acoustic setups to big spaces, requiring electric amplification for voices and other low-volume musical instruments. In-depth knowledge in transducers and electronics qualified RCF to develop complete audio systems, bringing the company to a leading position in multiple audio markets over the years, from OEM transducers to Hi-Fi, public address, portable speakers, recording studios, and big concert systems. RCF’s passion for perfection drives the design of every product to create enlightening, unique, and delightful experiences for our customers. All speakers and components are designed from the ground up and developed internally to maximize the end result.
