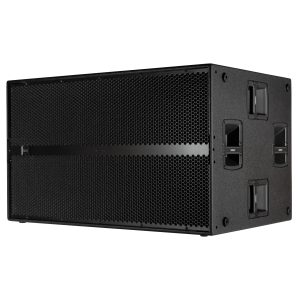

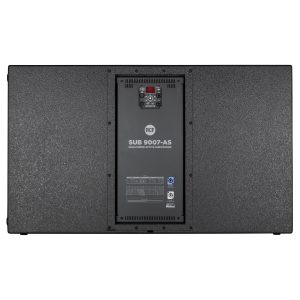

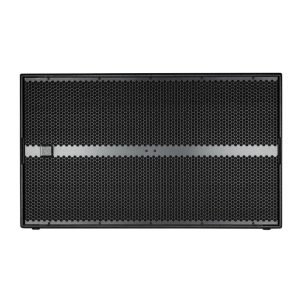

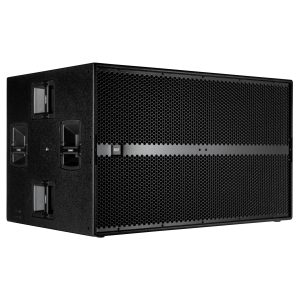

RCF SUB 9007-AS 2 x 21″ Woofer 141 dB max SPL

(1 customer review)

RCF SUB 9007-AS 2 x 21″ Woofer – featuring two, high power, hyper-vented 21” neodymium woofers with 4.0” inside-outside voice coils, this cabinet deliver a serious amount of low frequencies. Powered by a 7200 W digital amplifier, the SUB 9007-AS can perform in the most demanding situations.

$13,484.00
UPC: 8024530013578UPC: 8024530013578 Brand:

Features of the RCF SUB 9007-AS 2 x 21″ Woofer 141 dB max SPL:

  • 7200 Watt Peak power – 3600 Watt RMS
  • 141 dB max SPL
  • 20 Hz – 400 Hz frequency response
  • 2 x 21″ Woofer
  • DSP controlled Input section with selectable presets
  • Delay control
  • Integrated mechanics for multiple configurations with HDL50-A, HDL20-A, HDL10-A
  • RDNet remote and control
  • Baltic birch tour grade cabinet

Specifications:

Acoustical specifications
FREQUENCY RESPONSE:
20 Hz ÷ 400 Hz

MAX SPL @ 1M:
141 dB
Transducers
WOOFER:
2 x 21” neo, 4.0” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, RDNet Ethercon

OUTPUT CONNECTORS:
XLR, RDNet Ethercon

INPUT SENSITIVITY:
+4 dBu
Processor section
HI-PASS FREQUENCIES:
25Hz, 35Hz

LOW-PASS FREQUENCIES:
Variable from 50Hz to 400Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Fast Limiter

CONTROLS:
Gain, EQ, Xover, Phase switch, Output Delay Settings, Cardiloid

RDNET:
Yes
Power section
TOTAL POWER:
7200 W Peak, 3600 W RMS

LOW FREQUENCIES:
7200 W Peak, 3600 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
Mounting points, 2 x M20

HANDLES:
8 side

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
708 mm / 27.87 inches

WIDTH:
1188 mm / 46.77 inches

DEPTH:
785 mm / 30.91 inches

WEIGHT:
96 kg / 211.64 lbs

Weight 242.51 lbs
Dimensions 44.69 × 32.48 × 29.92 in
