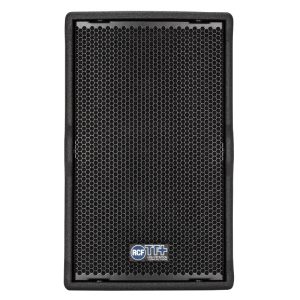

RCF TT 10-A 10″ woofer 1.0″ neo c. driver

(1 customer review)

The RCF TT 10-A 10″ woofer 1.0″ neo c. driver With 130 dB SPL power and a small footprint, active two-way speaker saves the day when you need top quality sound power and unobtrusive size.

$3,164.00

UPC: 8024530017200 SKU: 8024530017200 Category: Tags:
RCF Canada

Features of the RCF TT 10-A 10″ woofer 1.0″ neo c. driver:

  • 130 dB SPL Max
  • 1000W RMS, two-way Class-D amplifier
  • Rotatable 90° x 70° Constant Directivity Horn
  • Quick Fit Bracket Socket
  • FiRPHASE

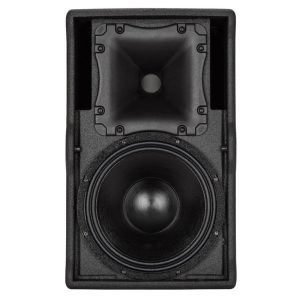

  • 10’’ neodymium Woofers, 2.5’’ voice coil
  • Horn-loaded 1” neo comp. driver, 1,75’’ voice coil
  • RDNet Networked Management
  • 60 ÷ 20000 Hz Frequency Range
Specifications

Acoustical specifications
FREQUENCY RESPONSE:
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
130 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
70°
Transducers
COMPRESSION DRIVER:
1.0” neo, 1.75” v.c

WOOFER:
10” neo, 2.5” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, RDNet Ethercon

OUTPUT CONNECTORS:
XLR, RDNet Ethercon

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
900 Hz

PROTECTIONS:
Thermal, HF

LIMITER:
Fast Limiter

CONTROLS:
Bypass, Linear/High Pass, Volume, RDnet on boar

RDNET:
Yes
Power section
TOTAL POWER:
2000 W Peak, 1000 W RMS

HIGH FREQUENCIES:
600 W Peak, 300 W RMS

LOW FREQUENCIES:
1400 W Peak, 700 W RMS

COOLING:
Convection

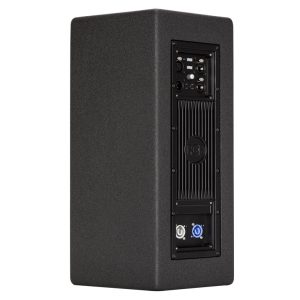

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
3X M10 TOP AND BOTTOM 2X PIN D.10 AND M10 SIDE

HANDLES:
1 TOP

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
490 mm / 19.29 inches

WIDTH:
306 mm / 12.05 inches

DEPTH:
299 mm / 11.77 inches

WEIGHT:
11.5 kg / 25.35 lbs

Brand

RCF

SINCE 1949 RCF BEGAN PRODUCING TRANSDUCERS IN 1949.
The first products sold were microphones and loudspeakers. In the late ’60s, concert sound was going electric, and many loudspeaker pioneers were searching for high-powered devices to use in their designs. RCF was one of the first European OEM suppliers for international brands, thanks to the company’s experience gained building high power transducers. In-depth know-how in transducers and electronics provided the perfect technological culture to allow RCF to develop complete pro audio systems, bringing the company to a leading position in multiple audio markets over the years. From Hi-Fi to public address, portable loudspeakers and big concert systems.

GTR Direct is a proud dealer for RCF Canada
RCF Canada
Weight 34.39 lbs
Dimensions 13.78 × 13.78 × 21.26 in
