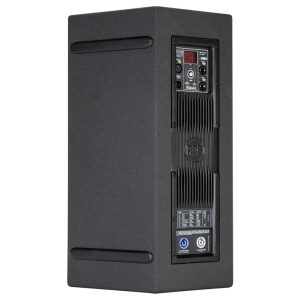

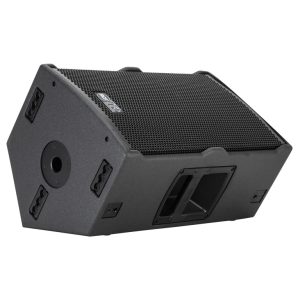

RCF TT 22-A II 12″ woofer 1.5 ” neo c. driver

(1 customer review)

The RCF TT 22-A II 12″ woofer 1.5 ” neo c. driver is a 2-way active system featuring a 12” neodymium woofer, 86 mm voice coil in a bass reflex configuration and a 1.4” exit, 75 mm voice coil neo compression driver.

$4,919.00

UPC: 8024530013219 SKU: 8024530013219 Category: Tags:
RCF Canada

Features of the RCF TT 22-A II 12″ woofer 1.5 ” neo c. driver:

  • 1100 W Class D Amplifier
  • 90 x 60 constant directivity coverage angle
  • 12″ neo woofer, 3.5″ mm voice coil
  • 1.5 ” neo c. driver, 3.0″ mm voice coil
  • DSP Processing
  • Onboard RDNet Control
  • Multifunctional cabinet
  • Very high output
Specifications

Acoustical specifications
FREQUENCY RESPONSE:
50 Hz ÷ 20000 Hz

MAX SPL @ 1M:
131 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.5” neo, 3.0” v.c

WOOFER:
12” neo, 3.5” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, RDNet Ethercon

OUTPUT CONNECTORS:
XLR, RDNet Ethercon

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
800 Hz

PROTECTIONS:
Thermal, HF

LIMITER:
Fast Limiter

CONTROLS:
proces., 8 sel. presets

RDNET:
Yes
Power section
TOTAL POWER:
2200 W Peak, 1100 W RMS

HIGH FREQUENCIES:
600 W Peak, 300 W RMS

LOW FREQUENCIES:
1600 W Peak, 800 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
6 x fly tracks, quick lock, pole mount

HANDLES:
2 on side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
600 mm / 23.62 inches

WIDTH:
365 mm / 14.37 inches

DEPTH:
379 mm / 14.92 inches

WEIGHT:
22.6 kg / 49.82 lbs

Brand

RCF

SINCE 1949 RCF BEGAN PRODUCING TRANSDUCERS IN 1949.
The first products sold were microphones and loudspeakers. In the late ’60s, concert sound was going electric, and many loudspeaker pioneers were searching for high-powered devices to use in their designs. RCF was one of the first European OEM suppliers for international brands, thanks to the company’s experience gained building high power transducers. In-depth know-how in transducers and electronics provided the perfect technological culture to allow RCF to develop complete pro audio systems, bringing the company to a leading position in multiple audio markets over the years. From Hi-Fi to public address, portable loudspeakers and big concert systems.

GTR Direct is a proud dealer for RCF Canada
RCF Canada
Weight 56.22 lbs
Dimensions 16.54 × 16.14 × 25.79 in
