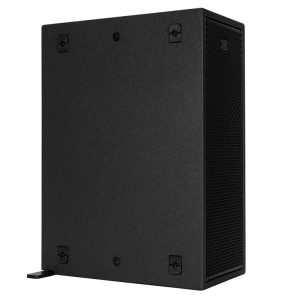

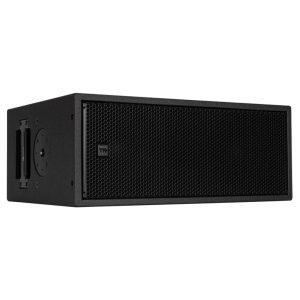

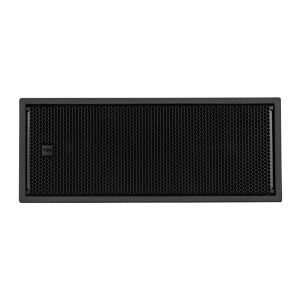

The RCF TT 808-AS 2 x 8” Woofers 129 DB MAX SPL is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8″ cone woofers powered by a 1000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with black polyurea and weatherproof treatment.
Features of the RCF TT 808-AS 2 x 8” Woofers 129 DB MAX SPL:
- 129 dB max SPL
- 40 Hz to 400 Hz frequency range
- 1000 W RMS Class-D Amplifier

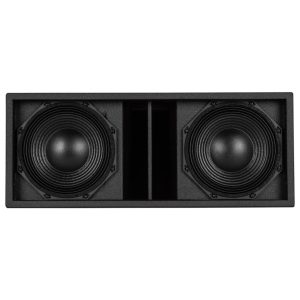

- 2 x 8” neodymium woofers, 2.5” v.c
- RDNet on board
- Bass Motion Control excursion management
- Flexible Rigging
- Rotatable TT+ Logo
Specifications:
Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 400 Hz
MAX SPL @ 1M:
129 dB
Transducers
WOOFER:
2 x 8” neo, 2.5” v.c

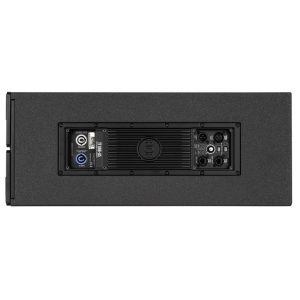

Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
PROTECTIONS:
Excurs.
LIMITER:
Fast Limiter
CONTROLS:
Gain, Equalization, ByPass on board
RDNET:
Yes
Power section
TOTAL POWER:
2000 W Peak, 1000 W RMS
LOW FREQUENCIES:
2000 W Peak, 1000 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
2X M20 TOP AND SIDE 8X M10 2X SIDE
HANDLES:
2 X SIDE
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
243.5 mm / 9.59 inches
WIDTH:
603.5 mm / 23.76 inches
DEPTH:
430 mm / 16.93 inches
WEIGHT:
20 kg / 44.09 lbs
Weight | 46.3 lbs |
---|---|
Dimensions | 25.59 × 18.9 × 11.42 in |
