RCF TTL 33-A WP STADIUM 6 neodymium transducers

(1 customer review)

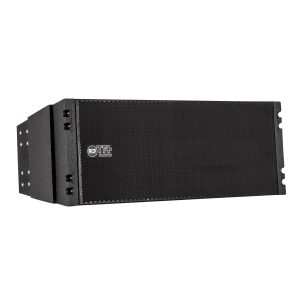

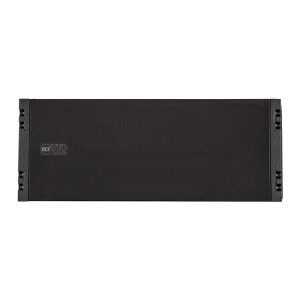

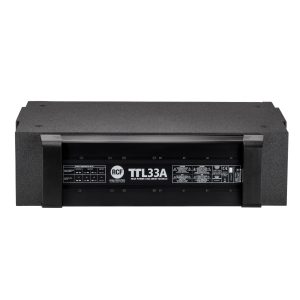

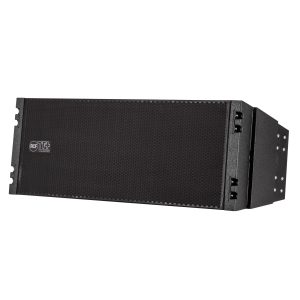

The RCF TTL 33-A WP STADIUM 6 neodymium transducers is a full range, ultra-compact, wide dispersion line array module that sets a new standard in the TT+ Stadia sound reinforcement, offering substantial power and efficiency for a variety of professional outdoor applications.

Please Call for the Price!

UPC: 8024530010577 SKU: 8024530010577 Category: Tags:
RCF Canada

Features of the RCF TTL 33-A WP STADIUM 6 neodymium transducers:

  • Effective 1250W switching power supply
  • 6 high-power neodymium transducers
  • Weatherproof touring-grade Baltic birch cabinet
  • RDNet compatible
  • IP 67 connectors
  • Lightweight anti-hygroscopic resin on transducers
  • Amplifier, DSP and connections protected against humidity
  • Safe rigging and hanging
  • Real-time monitoring and control exceeding EN60849 requirements
  • Front-grille designed for outdoor applications
Specifications

Acoustical specifications
FREQUENCY RESPONSE:
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
135 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
15°
Transducers
COMPRESSION DRIVER:
3 x 1.0” neo, 1.5” v.c

MIDRANGE:
8” neo, 2.0” v.c

WOOFER:
2 x 8” neo, 2.5” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, RDNet Ethercon

OUTPUT CONNECTORS:
XLR, RDNet Ethercon

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
400 Hz – 1800 Hz

PROTECTIONS:
Thermal, HF

LIMITER:
Fast Limiter

CONTROLS:
HF Correction, cluster size, HPF

RDNET:
Yes
Power section
TOTAL POWER:
2500 W Peak, 1250 W RMS

HIGH FREQUENCIES:
500 W Peak, 250 W RMS

MID FREQUENCIES:
1000 W Peak, 500 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection/Forced

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
Array side fittings screws (8 per side rear)

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
300 mm / 11.81 inches

WIDTH:
760 mm / 29.92 inches

DEPTH:
450 mm / 17.72 inches

WEIGHT:
33 kg / 72.75 lbs

Brand

RCF

SINCE 1949 RCF BEGAN PRODUCING TRANSDUCERS IN 1949. The first products sold were microphones and loudspeakers. In the late ’60s, concert sound was going electric, and many loudspeaker pioneers were searching for high-powered devices to use in their designs. RCF was one of the first European OEM suppliers for international brands, thanks to the company’s experience gained building high power transducers. In-depth know-how in transducers and electronics provided the perfect technological culture to allow RCF to develop complete pro audio systems, bringing the company to a leading position in multiple audio markets over the years. From Hi-Fi to public address, portable loudspeakers and big concert systems.

GTR Direct is a proud dealer for RCF Canada
RCF Canada
Weight 81.57 lbs
Dimensions 21.46 × 34.45 × 15.55 in
