RCF TTS 15-A 15″ Woofer 134 DB SPL MAX

(1 customer review)

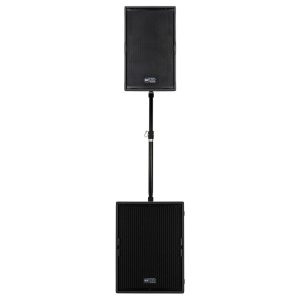

The RCF TTS 15-A 15″ Woofer 134 DB SPL MAX is a compact, high output subwoofer module ideal in combination with TT+ two way touring systems. The RCF TTS 15-A features low weight for easy handling, weatherproof cabinet, a 15” woofer powered by a 1100 watt RMS SMPS class-D Amplifier.

$4,194.00

UPC: 8024530015381 SKU: 8024530015381 Category: Tags:
RCF Canada

Features of the RCF TTS 15-A 15″ Woofer 134 DB SPL MAX :

  • 134 dB SPL Max
  • 40-400 Hz Frequency Range
  • 1 x 15″ woofer
  • DSP Controlled Input Section with selectable presets (e.g.cardioid)
  • 1100W RMS Class-D Amplifier
  • RDNet remote monitoring and control
  • Vertical and horizontal placement with M20 pole receptacle on top and side
  • Baltic Birch Cabinet
Specifications

Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 400 Hz

MAX SPL @ 1M:
134 dB
Transducers
WOOFER:
15”, 3.0” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, RDNet Ethercon

OUTPUT CONNECTORS:
XLR, RDNet Ethercon

INPUT SENSITIVITY:
+4 dBu
Processor section
HI-PASS FREQUENCIES:
40 Hz, 50 Hz

LOW-PASS FREQUENCIES:
Variable from 60 Hz to 400 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Fast Limiter

CONTROLS:
Gain, Eq, Prest Switch, Out Delay

RDNET:
Yes
Power section
TOTAL POWER:
2200 W Peak, 1100 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
2 x M20

HANDLES:
2 Side

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
600 mm / 23.62 inches

WIDTH:
445 mm / 17.52 inches

DEPTH:
633 mm / 24.92 inches

WEIGHT:
36.5 kg / 80.47 lbs

Brand

RCF

SINCE 1949 RCF BEGAN PRODUCING TRANSDUCERS IN 1949.
The first products sold were microphones and loudspeakers. In the late ’60s, concert sound was going electric, and many loudspeaker pioneers were searching for high-powered devices to use in their designs. RCF was one of the first European OEM suppliers for international brands, thanks to the company’s experience gained building high power transducers. In-depth know-how in transducers and electronics provided the perfect technological culture to allow RCF to develop complete pro audio systems, bringing the company to a leading position in multiple audio markets over the years. From Hi-Fi to public address, portable loudspeakers and big concert systems.

GTR Direct is a proud dealer for RCF Canada
RCF Canada
Weight 91.05 lbs
Dimensions 20.47 × 27.76 × 26.38 in
