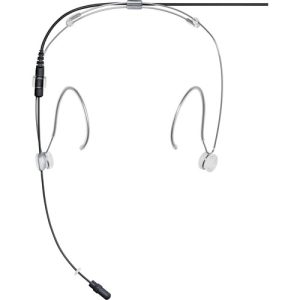

Shure DH5B/O-MTQG Omnidirectional Headset Mic – Black w/TA4F
Shure DH5B/O-MTQG Omnidirectional Headset Mic equipped with a TA4F connector for compatible Shure wireless bodypack transmitters. Built for the rigors of professional use, this durable mic offers a neutral, full-range sound ideal for capturing speech, dialog, and singing in broadcast, presentation, and theater applications.
Features of the Shure DH5B/O-MTQG Omnidirectional Headset Mic – Black w/TA4F:
- Broadcast, Theater, Speech
- For Shure Transmitters, TA4F Connector
- 5mm Miniature Design, Omni Polar Pattern
- Flexible Boom, 1.6mm Shure Plex Cable
Specifications:
Microphone
Form Factor Headworn
Sound Field Mono
Capsule MEMS
Polar Pattern Omnidirectional
Windscreen Foam (Included)
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 132 dB SPL (1 kHz, 1% THD)
Sensitivity -42.5 dBV at 1 kHz
Dynamic Range 101 dB
Signal-to-Noise Ratio 63 dB
Equivalent Noise Level 31 dB SPL A-Weighted
Connectivity
Output Connectors 1 x TA4/Mini XLR 4-Pin Female (Lockable/Waterproof)
Cable Length 66″ / 1.7 m
Cable Diameter 0.1″ / 1.6 mm
Power
Operating Voltage 5 V
Operating Current Consumption 220 µA
Physical
Color Black
IP Rating IP57
Construction Material ABS
Dimensions W: 0.2 x L: 0.6″ / W: 5.2 x L: 14.5 mm (Capsule)
L: 5.4″ / L: 13.6 cm (Boom)
Weight 0.7 oz / 20 g
