Shure GLXD14R-Z2 Wireless Instrument System with WA302 Instrument Cable

Name: Shure GLXD14R-Z2 Wireless Instrument System with WA302 Instrument Cable
SKU: GLXD14R-Z2
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Main view of the Shure GLXD14R-Z2 Wireless Instrument

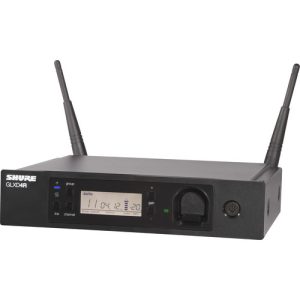

Receiver Shure GLXD14R-Z2 Wireless Instrument

Shure GLXD14R-Z2 Wireless Instrument System allow you to run up to 8 mics simultaneously in the same space. When used with the optional UA846Z2 frequency manager (available separately), up to 11 mics can operate simultaneously with improved RF reliability compared to standard GLX-D systems—ideal for installations with multiple wireless systems.

No Longer Available at GTRdirect.ca

UPC: 42406495745UPC: 42406495745

Tags: Bodypack Transmitter GLXD Instrument Cable Rackmount Receiver SHURE Wireless Instrument SystemCategory: Wireless Instrument Microphone SystemsSKU: GLXD14R-Z2

Brand: Shure

Description
Reviews 1

Features of the Shure GLXD14R-Z2 Wireless Instrument System with WA302 Instrument Cable:

For Guitar & Bass Players
WA302 Instrument Cable
Lightweight Bodypack Transmitter
True Diversity Rackmount Receiver
Two Removable Antennas
16-Hour SB902 Rechargeable Battery
Expandable to 11 Mic Channels/200′ Range

Specifications:

System
Wireless Technology Digital 2.4 GHz
Included Transmitters 1 x Bodypack
Diversity True Digital Diversity
Max Operating Range 200′ / 61 m (Line of Sight)
Max Transmitters per Band 6
Latency 4 to 7.3 ms
Dynamic Range 120 dBA
Modulation Proprietary
Receiver
Receiver Type Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TRS Female Balanced/Unbalanced Output
Gain Range -18 to +42 dB (1 dB Steps)
Pad 30 dB
Audio Output Level XLR Output:
+18 dBV (Line Level)
XLR Output:
-12 dBV (Mic Level)
1/4″ Output:
+12 dBV
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity 1 x Micro-USB (Host Connection)
Impedance XLR Output:
100 Ohms (Balanced)
1/4″ Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
Approximate RF Sensitivity -88 dBm
Spurious Rejection: >35 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 14 to 18 VDC at 550 mA, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing Steel
Dimensions 7.8 x 1.7 x 6.4″ / 197 x 42 x 163 mm
Weight 32 oz / 907 g

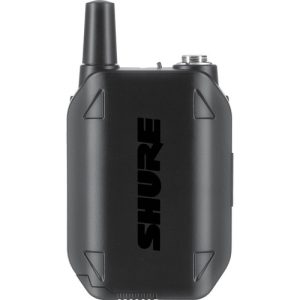

Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW (EIRP)
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Included Cable Connector 1/4″ TS
Muting Off/On Switch
Audio Input Level -8.4 dBV / 7.5 V p-p
Gain Range -18 to +42 dB (1 dB Steps)
Sync Method Proprietary
Antenna 1 x Internal, Fixed (Beltpack)
Power Requirements Battery
Battery Type 1 x Shure SB902 (Included, Replaceable)
Battery Charging Time .25 to 3 Hours
Approx. Battery Life 16 Hours (Lithium Rechargeable)
USB/Lightning Connectivity 1 x Micro-USB (Charging)
Display & Indicators 1 x LED (Battery Status, Sync)
Housing Metal
Dimensions 2.5 x 3.6 x 0.9″ / 64.5 x 90.4 x 22.9 mm (without Antennas)
Weight 4.7 oz / 132 g (without Batteries)
