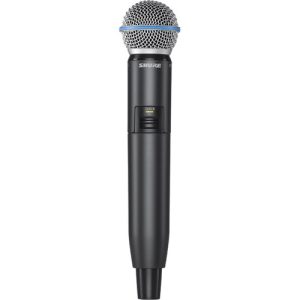

Shure GLXD24R/B58-Z2 Wireless Handheld System with BETA58A Mic

Features of the Shure GLXD24R/B58-Z2 Wireless Handheld System with BETA58A Mic:

• For Presenters and Performers
• Beta 58A Supercardioid Mic/Transmitter
• True Diversity Rackmount Receiver
• 16-Hour SB902 Rechargeable Battery
• Two Removable Antennas
• Expandable to 11 Mic Channels/200′ Range

Specifications:

System
Wireless Technology Digital 2.4 GHz
Included Transmitters 1 x Handheld
Diversity True Digital Diversity
RF Channel Scanning Auto-Scan
Max Operating Range 200′ / 61 m (Line of Sight)
Max Transmitters per Band 8
Latency 4 to 7.3 ms
Dynamic Range 120 dBA
Modulation Proprietary
Receiver
Receiver Type Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TRS Female Balanced/Unbalanced Output
Gain Range -18 to +42 dB (1 dB Steps)
Pad 30 dB
Audio Output Level XLR Output:
+18 dBV (Line Level)
XLR Output:
-12 dBV (Mic Level)
1/4″ Output:
+12 dBV
Phantom Power Protection On 1/4″, XLR Outputs
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity 1 x Micro-USB (Host Connection)
Impedance XLR Output:
100 Ohms (Balanced)
1/4″ Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
RF Output Power 10 mW (EIRP)
Spurious Rejection: >35 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 14 to 18 VDC at 550 mA, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing Steel
Dimensions 7.8 x 1.7 x 6.4″ / 197 x 42 x 163 mm
Weight 32 oz / 907 g
Transmitter
Transmitter Type Handheld
RF Output Power 10 mW (EIRP)
Audio I/O None
Muting Off/On Switch
Gain Range -18 to +42 dB (1 dB Steps)
Sync Method Proprietary
Antenna 1 x Internal, Fixed (Handheld)
Power Requirements Battery
Battery Type 1 x Shure SB902 (Included, Replaceable)
Battery Charging Time .25 to 3 Hours
Approx. Battery Life 16 Hours (Lithium Rechargeable)
USB/Lightning Connectivity 1 x Micro-USB (Charging)
Display & Indicators 1 x LED (Battery Status, Sync)
Housing Plastic
Dimensions 2 x 9.9 x 1.5″ / 51 x 252 x 37 mm (without Antennas)
Weight 9.4 oz / 267 g (without Batteries)
Microphone
Microphone Type Handheld Capsule
Sound Field Mono
Capsule Dynamic
Polar Pattern Supercardioid
Frequency Range 50 Hz to 16 kHz
Equivalent Noise Level 23 dB A-Weighted
Sensitivity -51.5 dBV/Pa
