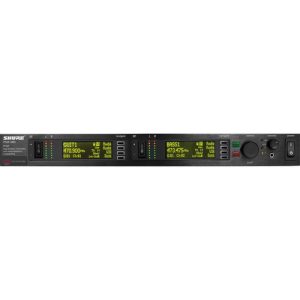

Shure P10T-G10 PSM1000 Dual Transmitter

Features of the Shure P10T-G10 PSM1000 Dual Transmitter:

• For P10R Personal Listening Receivers
• Dual Channel for Double Program Material
• 72 MHz Tuning Bandwidth
• Networkable via Ethernet
• Wireless Workbench Software Control
• Switchable RF Output Power
• All-Metal Chassis
• Includes Antennas

Specifications:

Specifications
RF Carrier Frequency Range G10: 470 to 542 MHz
Compatible Frequencies Per Band: 39
Tuning Bandwidth 72 MHz
Operating Range 300′ / 90 m (Environment Dependent)
Frequency Response 35 Hz to 15 kHz (±1 dB)
Signal to Noise Ratio 90 dB (Typical) A-Weighted
Total Harmonic Distortion (THD) Ref. ±34 kHz Deviation at 1 kHz <0.5% (Typical) Companding Patented Shure Audio Reference Companding Spurious Rejection Ref. 12 dB SINAD: >80 dB (Typical)
Frequency Stability ±2.5 ppm
MPX Pilot Tone 19 kHz (±0.3 kHz)
Modulation FM (±34 kHz Deviation at 1 kHz)
MPX Stereo Ref.
Operating Temperature 0 to 135°F / -18 to 57°C
Transmitter
RF Output Power Selectable: 10, 50, 100 mW (+20 dBm)
RF Output Impedance 50 Ohms (typical)
Power Requirement Input: 100 to 240 VAC, 50/60 Hz, 0.5 A Max (5.5, with Outlet Loaded)
Output: 100 to 240 VAC, 50/60 Hz, 5 A Max, Unswitched
Audio Input Combination XLR-1/4″ /6.3 mm TRS
Polarity XLR: Non-Inverting (Pin 2 Positive with Respect to Pin 3)
1/4″ / 6.3 mm: Tip Positive with Respect to Ring
Configuration Electronically Balanced
Impedance 70.2 Kilohms (Actual)
Nominal Input Level Switchable: +4 dBu, -10 dBV
Maximum Input Level +4 dBu: +29.2 dBu
-10 dBV: +12.2 dBu
Pin Assignments XLR: 1=Ground, 2=Hot, 3=Cold
1/4″ / 6.3 mm TRS: Tip=Hot, Ring=Cold, Sleeve=Ground
Phantom Power Protection Up to 60 VDC
Audio Output
Connector Type 1/4″ / 6.3 mm TRS
Configuration Electronically Balanced
Impedance Connected Directly to Inputs
Physical Characteristics
Dimensions 1.7 x 19.0 x 13.5″ / 4.3 x 48.3 x 34.3 cm
Weight 10.4 lb / 4.7 kg
