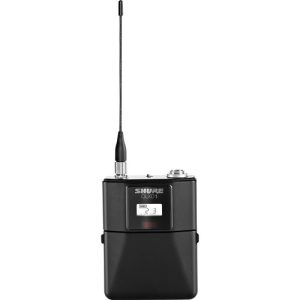

Shure QLXD1-G50 Wireless Bodypack Transmitter with TA4F

Features of the Shure QLXD1-G50 Wireless Bodypack Transmitter with TA4F:

• For QLX-D and ULX-D Receivers
• Use with Lav/Headset Mic or Instrument
• Locking TA4M Connector
• 2560 Auto-Scan Frequencies
• 1/10mW RF Output Power
• Backlit LCD, Detachable Antenna
• Adjustable Gain Control
• Secure AES-256 Encryption
• Networked Intelligent Charging
• 9-Hr AA Batteries

Specifications:

Wireless Technology Digital UHF
RF Frequency Band G50:
470 to 534 MHz
RF Bandwidth 64 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 330′ / 100.6 m
Sample Rate/Resolution 48 kHz / 24-Bit
Latency < 2.9 ms
Encryption AES 256
Modulation Proprietary
Transmitter
Transmitter Type Bodypack
RF Output Power 1 / 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Audio Input Level 8.5 dBV / 7.5 Vpp
Gain Range 0 to 21 dB (3 dB Steps)
Frequency Response 20 Hz to 20 kHz
Sync Method IR
Antenna 1 x 1/4 Wave Detachable
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life 9 Hours (Alkaline)
Display & Indicators 1 x Backlit LCD (Channel, Group, RF Output Power)
Housing Aluminum
Dimensions 2.6 x 3.4 x 0.9″ / 65 x 86 x 23 mm
Weight 4.9 oz / 138 g (without Batteries)
