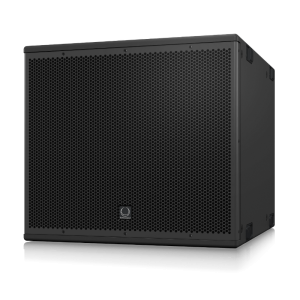

Turbosound NuQ115B-AN Front Loaded Subwoofer
December 7, 2021Features of the Turbosound NuQ115B Front Loaded Subwoofer
- Front loaded subwoofer for portable PA and installation applications
- 500 Watts continuous, 2,000 Watts peak power
- Double suspension 15″ low frequency driver with inside/outside wound coil
- Low distortion bass reflex port design
- 18 mm (3/4?) birch plywood enclosure with hard wearing semi matt black paint finish
- Integral M10 rigging points for ease of installation
- 35 mm pole mount to support satellite speaker
- Neutrik speakON* NL4 connectors for reliable long life operation
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Specifications
System
Frequency Response | 45 Hz – 150 Hz ± 3 dB 38 Hz – 200 Hz – 10 dB |
Nominal Dispersion | Half space |
Power Handling (IEC) | 500 W continuous, 2,000 W peak |
Sensitivity | 99 dB (1 W @ 1 m) |
Maximum SPL | 126 dB continuous, 132 dB peak |
Impedance | 8 O |
Components | 1 x 15″ (387 mm) LF driver |
Enclosure
Connectors | 2 x Neutrik speakON NL4 |
Wiring | |
Dimensions (H x W x D) | 519 x 579 x 620 mm (20.4 x 22.8 x 24.4″) |
Net Weight | 36 kg (79.3 lbs) |
Construction | 18 mm (¾”) birch plywood |
Finish | Semi matt black paint |
Grille | Powder coated perforated steel |
Flying Hardware | M10 X 16 points |
