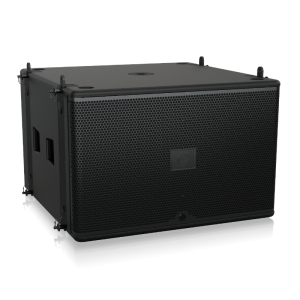

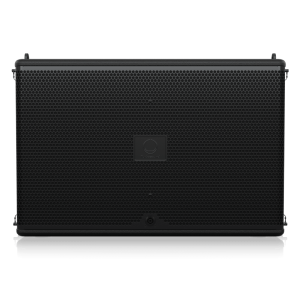

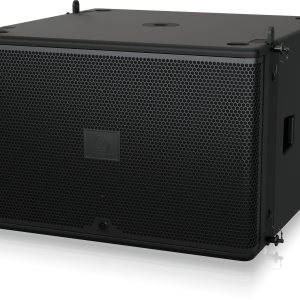

Turbosound MS215 Bandpass Subwoofer

(1 customer review)

The Turbosound MS215 Bandpass Subwoofer is a compact passive dual 15″ 4,000 Watt (peak) that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable and touring audio systems.

$4,860.00

UPC: 653341346032 SKU: 653341346032 Category: Tags:
Turbosound Canada

Features of the Turbosound MS215 Bandpass Subwoofer

  • Cardioid-arrayable, vented bandpass dual 15″ subwoofer for touring and installation applications
  • 1000 Watts continuous, 4,000 Watts peak power
  • 15? neodymium low Frequency transducers
  • Ergonomic 4-point suspension system allows rapid deployment in either orientation
  • Suspend up to 12 MS215 elements at 10:1 safety factor
  • Designed for suspension with MV212 and MV212-XV line array elements in mixed arrays
  • Seamless integration with Lab Gruppen amplifiers and Lake DSP for a complete system solution
  • Flexible cardioid configurations and electronic delay steering provide superior rear rejection and pattern control
  • Optimized tuning for extended low frequency impact and accurate transient response
  • Integral runners and recesses combined with suspension system accessories facilitate secure ground stacking
  • Integral M20 (3/4″ / 20 mm thread) pole mount socket to support satellite speaker configurations
  • 18 mm (3/4″) Baltic birch enclosure with extremely durable semi matte black paint finish

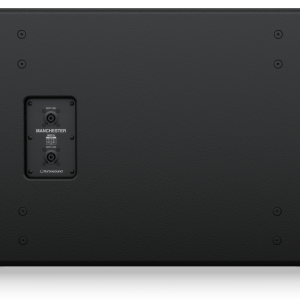

  • Tour grade Neutrik SpeakON* STX NL4 rear panel connector for input connection
  • Front-mounted NL4 connector for rear-firing cardioid operation

Specifications

The loudspeaker shall be of the passive subwoofer type, consisting of two 15″ (381 mm) LF drivers. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 40 Hz to 115 Hz and within -10 dB from 35 Hz to 150 Hz. Nominal dispersion shall be “half space.” Maximum amplifier output power shall be 4,000 Watts peak, Peak level at 1 m under half space conditions using  IEC 268-5 pink noise with crest factor 4, with dedicated pre-set, shall be 143 dB. Dimensions: 530 mm high x 810 mm wide x 798 mm deep (20.9 x 31.9 x 31.4”). Net weight: 83 kg (183 lbs). The loudspeaker system shall be the TURBOSOUND MS215. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance / size specifications are equalled or exceeded.
